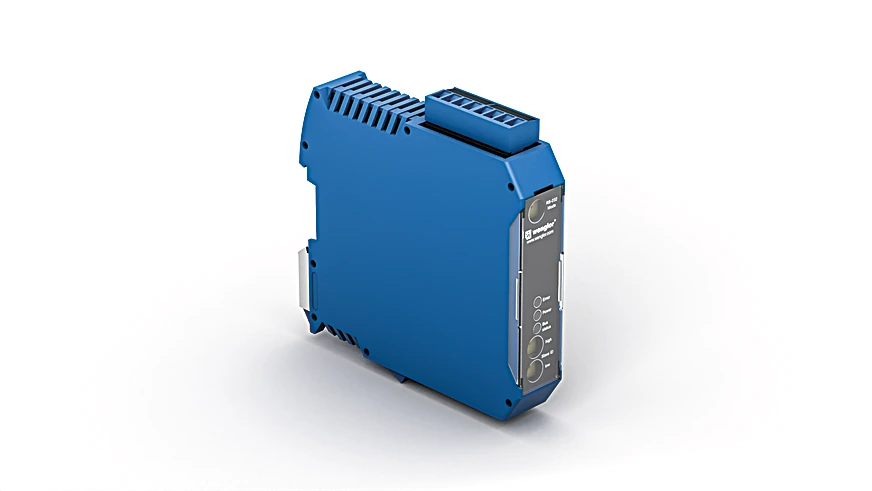

Wenglor ZAG73AN01 Fieldbus Gateway RS-232 to PROFIBUS DP

Features

• Gateway from RS-232 interfaces on PROFIBUS DP
• Easy handling
• Voltage supply of external units (24 V DC or 5 V DC) via the gateway
• Supply Voltage: 15 to 30 V DC
• Voltage Supply of external products: 5 V
• Voltage Supply of external products: 24 V DC
• Current Consumption Gateway (Ub = 24 V): < 100 mA
• Current Consumption Sensor (Ub = 5 V): < 500 mA
• Current Consumption Sensor (Ub = 24 V): < 400 mA
• Temperature Range: 14°F to 140°F
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Interface: RS-232
• Baud Rate PROFIBUS: < 12 MBd
• Baud Rate RS-232: < 115,200 Bd
• Number of users: 126
• Protection Class: III
• Material: Plastic, PA
• Degree of Protection: IP20
• Connection Mode Supply Voltage: Terminal Block
• Connection Mode Supply Voltage, I/O: Terminal Block
• Connection RS-Side: Terminal Block
• Connection Bus Side: SubD 9 B
• DIN-Rail mounting: 35 mm
• Weight: 230 g
• Scope of delivery: 1 × fieldbus gateway
