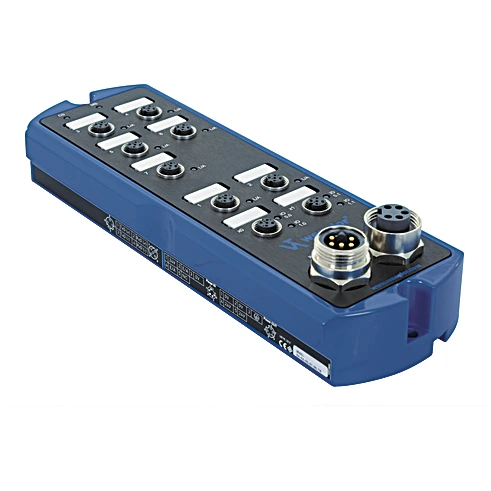

Wenglor ZAC51PN01 Switch

Features

• 2 digital I/O ports
• 7 Industrial Ethernet ports
• High protection class IP67
• Rugged aluminium housing
• Supply Voltage: 18 to 32 V
• Power consumption of device max.: 0.3 A
• Power consumption of system max.: 0.3 A
• Max. Switching Current Switching Outputs: 0.6 A
• max. total current of the digital I/O ports: 1 A
• Switching Output Voltage Drop: < 2.5 V
• Temperature Range: -13°F to 140°F
• Short Circuit Protection: yes
• Overload Protection: yes
• Reverse Polarity Protection: yes
• Number of digital I/O ports: 2
• Transmission rate: 10/100 Mbit/s
• Transmission Mode: Full/Half Duplex
• Managed Switch: yes
• Switch Mode: Store & Forward
• VLAN Prioritization: yes
• Auto-Crossover: yes
• Auto-Negotiating: yes
• Auto-Polarity: yes
• Interface: PROFINET
• Protection Class: III
• Setting Method: Web server
• Material: Aluminum
• Degree of Protection: IP67

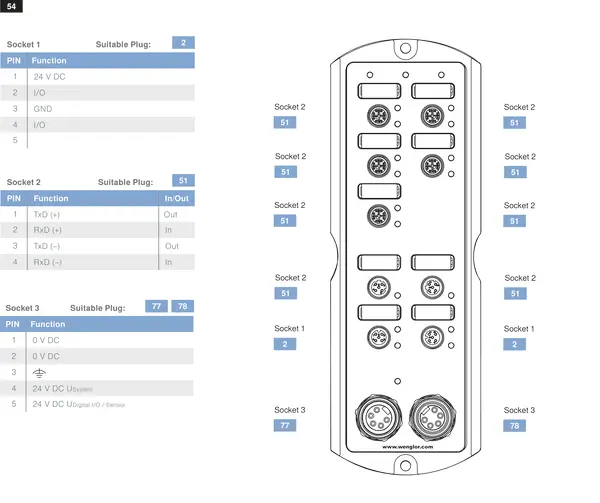

• Type of Connection Power: 2 × 7/8", 5-pin
• Type of Connection Industrial Ethernet Ports: 7 × M12; 4-pin
• Type of connection digital I/O ports: 2 × M12; 4-pin
• Weight: 1,401 g
• Scope of delivery: 1 × BEF-SET-40 mounting set, 1 × initial start-up instructions, 1 × switch, 1 × thermal transfer printing adhesive label
• PROFINET-I/O, CC-B: yes
• Complementary Products: Locking Screw for 7/8" Z0028, Locking Screw for M12 Z0027
