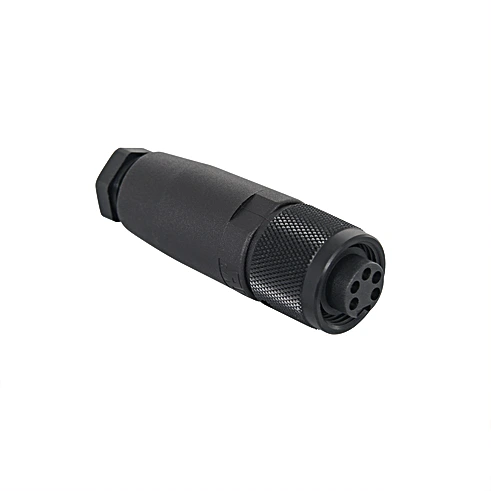

Wenglor ZAB78NN01 Connection Socket 7/8"; 5-pin
Connection Socket 7/8"; 5-pin.
$45.50
Part Number
- ZAB78NN01
Highlights...
- ZAB78NN01
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Screw-type technology
- Socket 7/8", straight
- Connection 1: Socket, straight
- Connection mode 1: 7/8", 5-pin
- Outer diameter (d): 8 to 10 mm
- Wire cross-section: ≤ 1.5 mm²
- Assembling: Screw Terminal Technology
- Degree of Protection: IP67
- Temperature Range: -40°F to 194°F
- Material Sleeve Nut: Aluminum, anodised
- Weight: 48 g
- Scope of delivery: 1 × connection socket
- Packaging unit: 1 Piece
Documents
Spec Sheets
Other

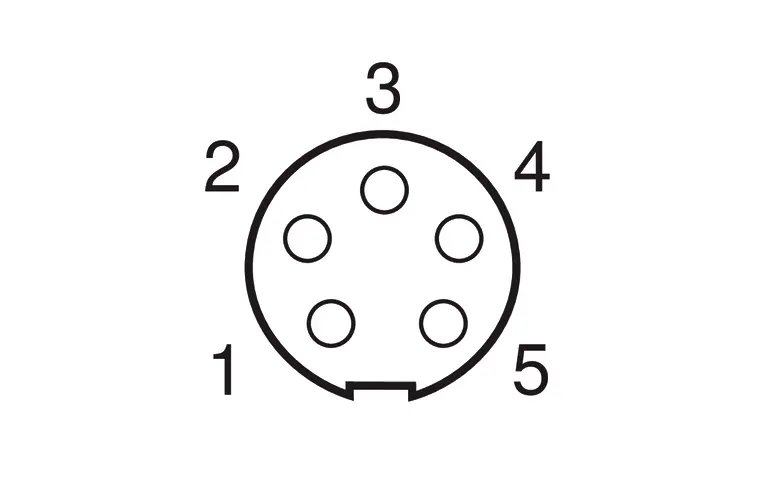

- Wenglor ZAB78NN01 Connection Socket 7/8"; 5-pin Pin assignment (83 KB)

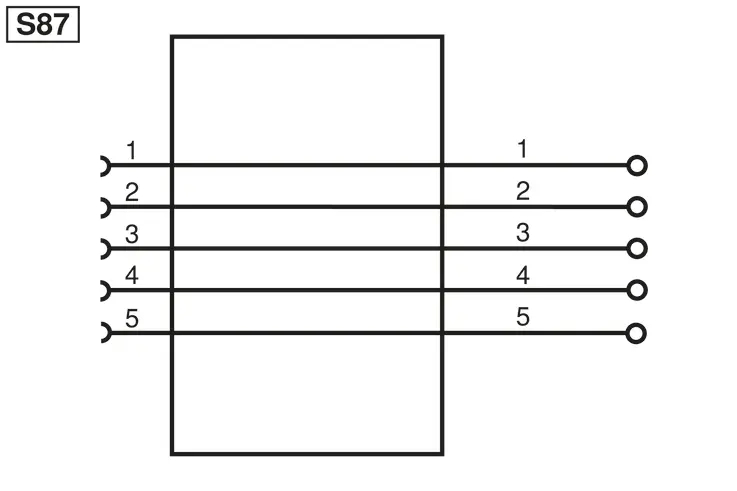

- Wenglor ZAB78NN01 Connection Socket 7/8"; 5-pin Connection Diagram-1 (25 KB)
- Wenglor ZAB78NN01 Connection Socket 7/8"; 5-pin Connection Diagram-2 (38 KB)

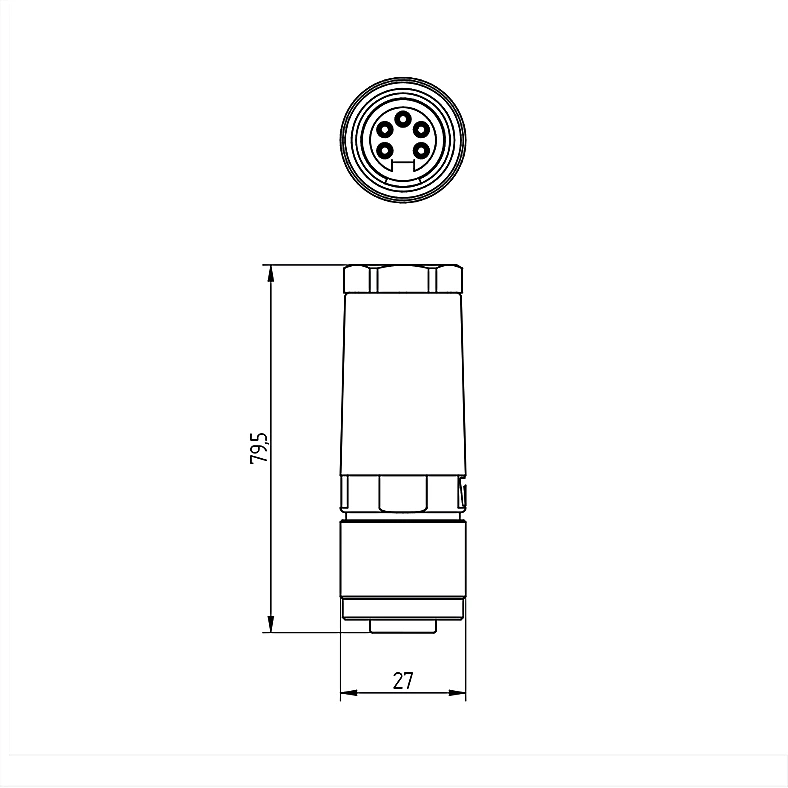

- Wenglor ZAB78NN01 Connection Socket 7/8"; 5-pin Dimensioned Picture (16 KB)
