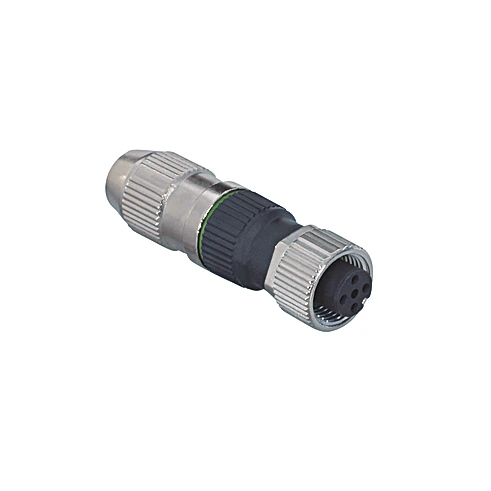

Wenglor ZAB02NN01 Connection Socket M12 × 1; 4-pin
Connection Socket M12 × 1; 4-pin.
$24.60
Part Number
- ZAB02NN01
Highlights...
- ZAB02NN01
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Insulation displacement technology (IDC)
- Socket M12 × 1, straight
- Connection 1: Socket, straight
- Connection mode 1: M12 × 1, 4-pin
- Torque: M12: 0,6 Nm
- Coding: A-coding
- Outer diameter (d): 4 to 5.1 mm
- Wire cross-section: 0.25 to 0.5 mm²
- Assembling: Insulation displacement connector (IDC)
- Degree of Protection: IP67
- Temperature Range: -13°F to 185°F
- Material Sleeve Nut: Zinc, nickel-plated
- Weight: 25 g
- Scope of delivery: 1 × connection socket
- Packaging unit: 1 Piece
Documents
Spec Sheets
Other

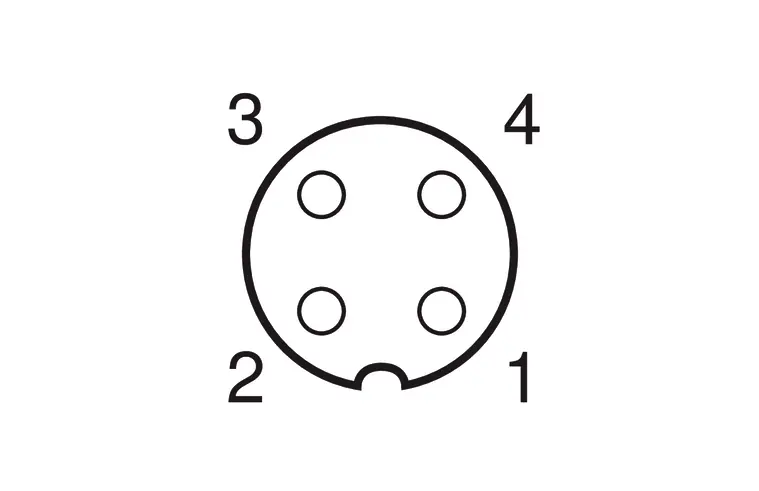

- Wenglor ZAB02NN01 Connection Socket M12 × 1; 4-pin Pin assignment (82 KB)

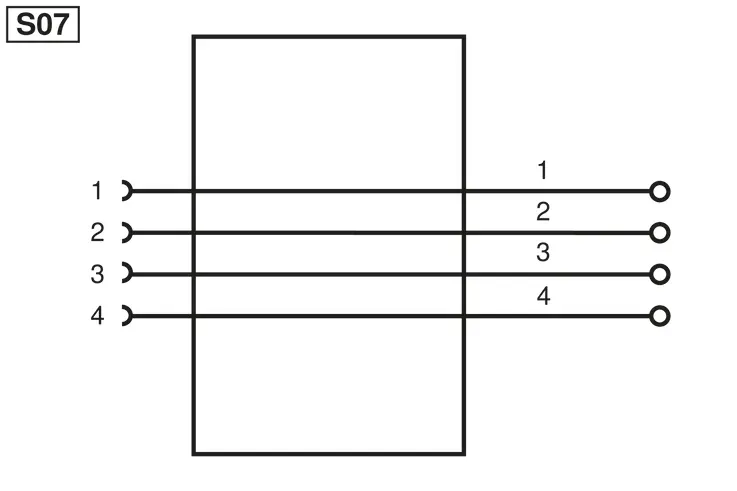

- Wenglor ZAB02NN01 Connection Socket M12 × 1; 4-pin Connection Diagram-1 (24 KB)
- Wenglor ZAB02NN01 Connection Socket M12 × 1; 4-pin Connection Diagram-2 (38 KB)

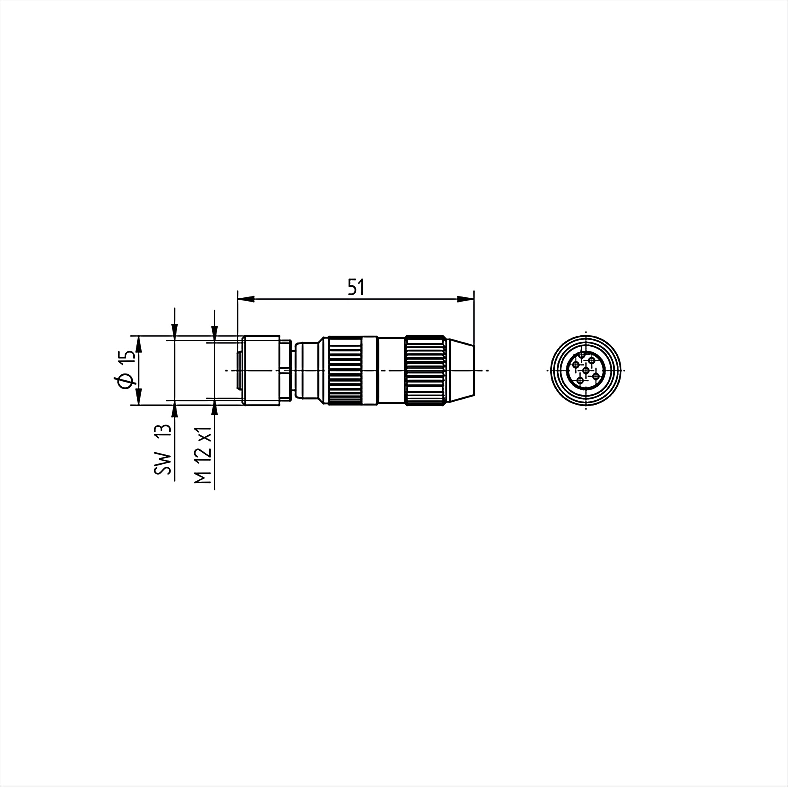

- Wenglor ZAB02NN01 Connection Socket M12 × 1; 4-pin Dimensioned Picture (14 KB)
