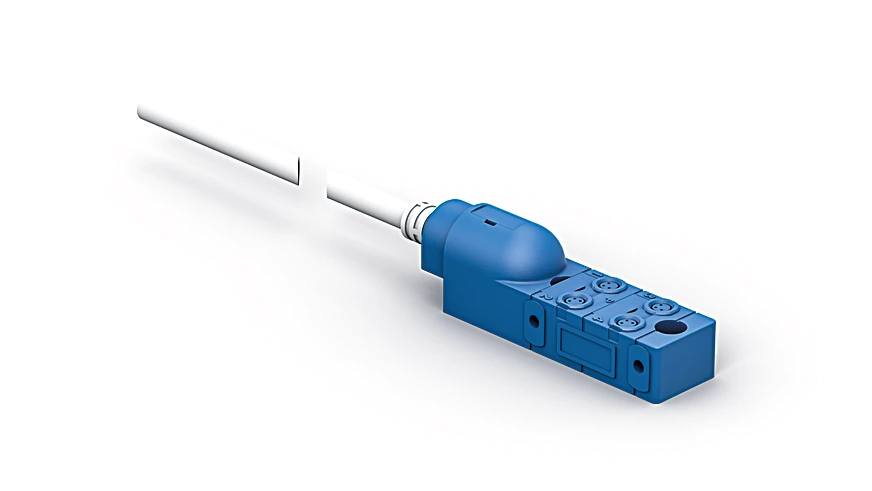

Wenglor ZAA08R501 Connection Box for M8 × 1; 3-pin; 4 Ports

Features

• High protection class IP67
• Supply Voltage: 18 to 30.2 V
• Connection 1: Socket, 4 ports

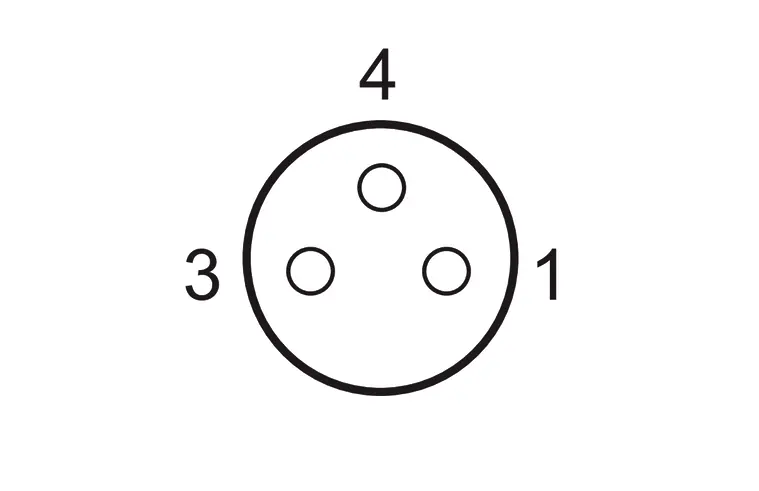

• Connection mode 1: M8 × 1, 3-pin
• Torque: M8: 0,4 Nm +0,1 Nm
• Cable length (L): 5 m
• Outer diameter (d): 6.9 mm
• Wire cross-section: 0.34 / 0.75 mm²
• Display: LED
• Degree of Protection: IP67
• Temperature Range: -4°F to 158°F
• Housing Material: Plastic, TPU
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: PVC
• Halogen-free: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): 12 × d
• Bending radius (used in motion): 12 × d
• Travel speed (with 5 m horizontal travel distance): 2 m/s
• Acceleration: 5 m/s²
• Bending cycles: > 2000000
• Weight: 466 g
• Scope of delivery: 1 × connection box
• Packaging unit: 1 Piece
