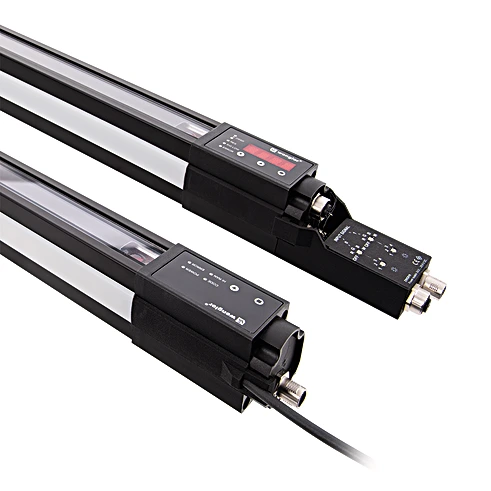

Wenglor Z99G006 LED Indicator Set for safety field height of 910 mm

LED Indicator Set for safety field height of 910 mm.

$409.00
Part Number
  • Z99G006
Highlights...

Features

  • Quick identification of ESPE operating states
  • Avoidance of inadvertent ESPE resolution settings
  • Visualization of operating states in different colors
  • Light Source: RGBW
  • Supply Voltage: 20.4 to 28.8 V DC
  • Temperature Range: 32°F to 131°F
  • Power: 24 W
  • Brightness setting: 4 levels
  • Degree of Protection: IP20
  • Weight: 1,419 g
  • LED indicator: For safety field height of 910 mm
  • Scope of delivery: 1 × Z99G016 connection unit, 1 × quick start, 1 × ZC4V001 connection cable, 2 × clamping profiles, 2 × LED indicator stripes
  • Complementary Products: Safety light curtain set SEFG416, SEFG436, Safety light curtain set SEFG456, SEFG476
The LED indicators indicate the operating states of SEFG safety light curtains and SEFB multi-light arrays in color. Depending on the utilized signal output, users can choose between four colors (RGBW) and select the desired light intensity. The setting is entered via the connection unit.
