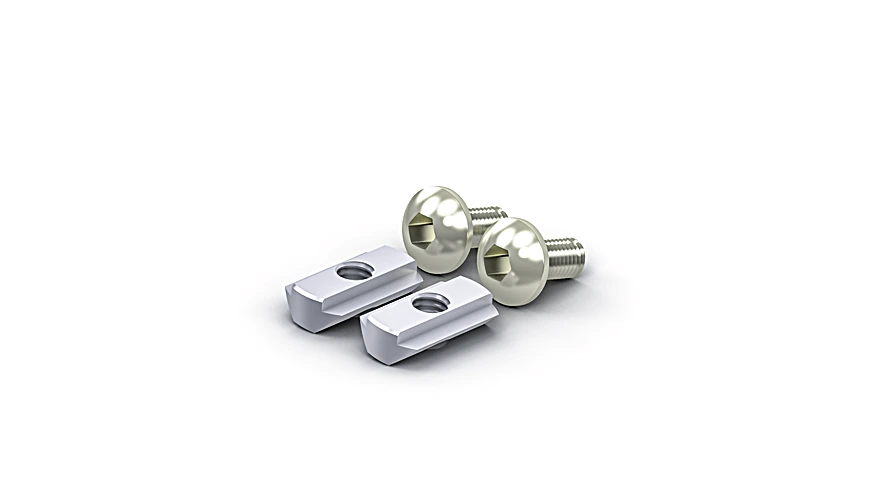

Wenglor Z90E002 Mounting for reflectors with M3 mounting holes

Features

• Especially suitable for RE6210BM
• Included: 2 × M3 × 4 mm screws, 2 × M3 spring washers, 2 × washers, 2 × M3 nuts
• T-slot nuts can be inserted into the T-slot of the ZBPWx0x mounting profiles
• Thread: M3
• Length: 4 mm
• Mounting type, device-side: Screwable with slot nut
• Mounting type, system-side: Mounting profile
• Material: Stainless Steel
• For edge length: 10 × 10 mm
• Weight: 2 g
• Scope of delivery: 2 × slot nuts; 2 × screws (M3×14), 2 × M3 screws × 4 mm
• Packaging unit: 1 Piece
• Use: For mounting profile, for Reflectors, for mounting bracket
