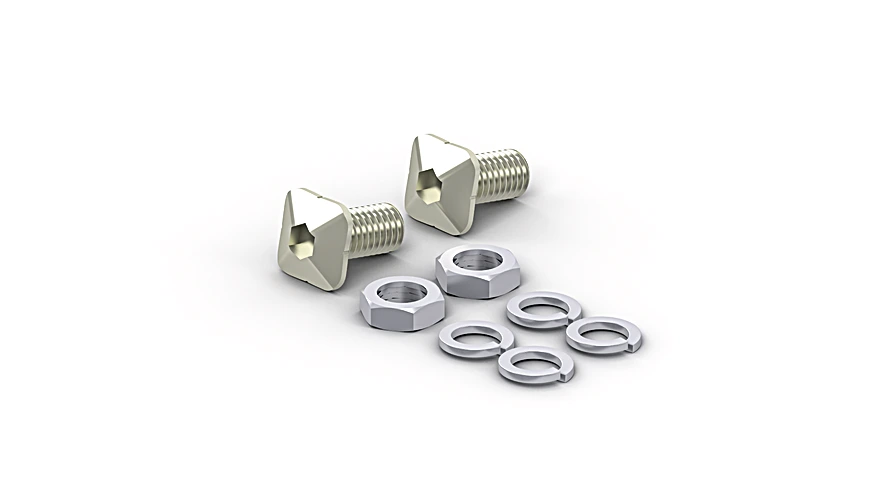

Wenglor Z90E001 Mounting for reflectors with M3 mounting holes

Features

• Included: 2 × M3 × 6 mm screws, 2 × M3 spring washers, 2 × washers, 2 × M3 nuts
• Square screw head suitable for T-slot of ZBPW fixing profiles
• Mounting for reflectors and mounting brackets with a height of up to 4 mm
• Thread: M3
• Length: 6 mm
• Mounting type, device-side: Screwable with slot nut screw
• Mounting type, system-side: Mounting profile
• Material: Stainless Steel
• For edge length: 10 × 10 mm
• Weight: 2 g
• Scope of delivery: 2 × M3 spring washers, 2 × M3 slot nut screws × 6 mm, 2 × M3 hex nuts, 2 × M3 washers
• Packaging unit: 1 Piece
• Use: For mounting profile, for Reflectors, for mounting bracket
