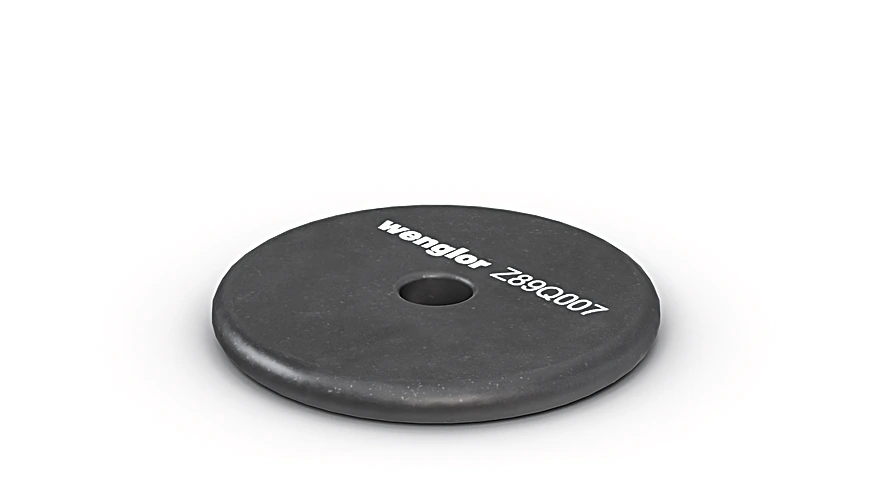

Wenglor Z89Q007 RFID Transponder

RFID Transponder.

$21.80
Part Number
  • Z89Q007
Highlights...

Features

  • Frequency band 13.56 MHz
  • High degree of protection
  • Resistant to high temperature
  • Passive data carrier
  • Rugged housing design
  • Storage Capacity: 2000 Bytes
  • Configuration memory: 48 Bytes
  • Storage organization: 256 x 8 Bytes
  • UID serial number: 8 Bytes
  • Frequency band: 13.56 MHz
  • Max. writing cycles: 100000
  • RFID standard: ISO/IEC 15693
  • Installation Type: On metal-free materials
  • Material: Plastic, PPA
  • Degree of Protection: IP68, IP69K
  • Temperature Range: -13°F to 176°F
  • Storage temperature: -40°F to 194°F
  • Weight: 3 g
  • Packaging unit: 1 Piece
These passive RFID transponders enable contactless data processing with an RFID reader without the need for a separate power supply. The power supply is provided via the connection with an RFID reader. The RFID chip in the transponder has a globally unique identification number that can be read but not overwritten. With a frequency band of 13.56 MHz, RFID transponders offer a reliable identification solution for short-range applications.
