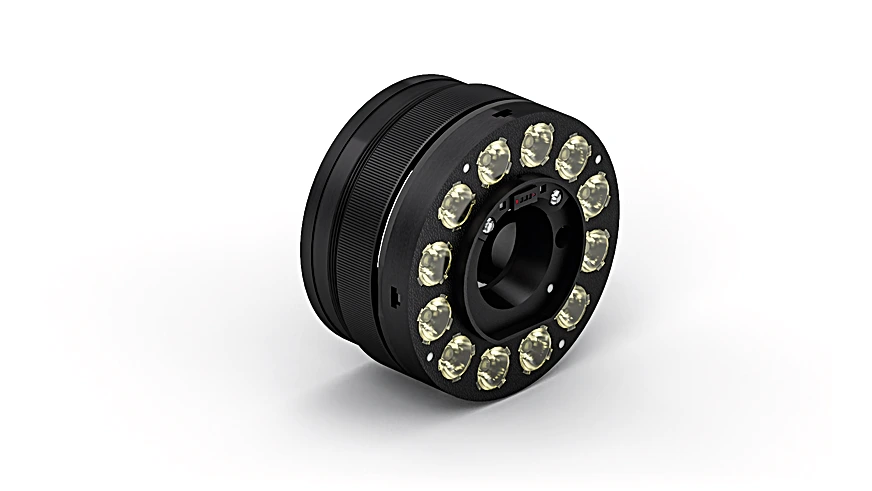

Wenglor Z60F004 Illumination Module White Light for B60 auto-focus narrow

Features

• Diffuse illumination
• Quick and easy replacement
• Sectors can be controlled separately
• Multizone Distance Sensor
• Test object status LED (green, red)
• Light Source: White Light
• Color temperature: 5,800 K
• Beam angle: 32 °
• Supply Voltage: 24 V DC
• Current Consumption Continuous Mode (Ub = 24 V): 0.2 A
• Current consumption flash mode OverDrive (operating voltage = 24 V): 1.1 A
• Flash duration (max.): 0.05 to 20 ms
• Duty cycle (max.): 0,1
• Protection Class: III
• Dimming: Software wenglor uniVision 3
• OverDrive: yes
• Housing Material: Aluminium, AlMg1SiCu, Plastic, PA/ABS
• Optic Cover: Plastic, PMMA
• Weight: 60 g
• MTTFd (EN ISO 13849-1): 1,236.87 a
• Scope of delivery: 1 × lighting module
• Operating modes: Continuous, Strobe, Strobe Overdrive
• Multizone Distance Sensor: yes
• Complementary Products: Filter
