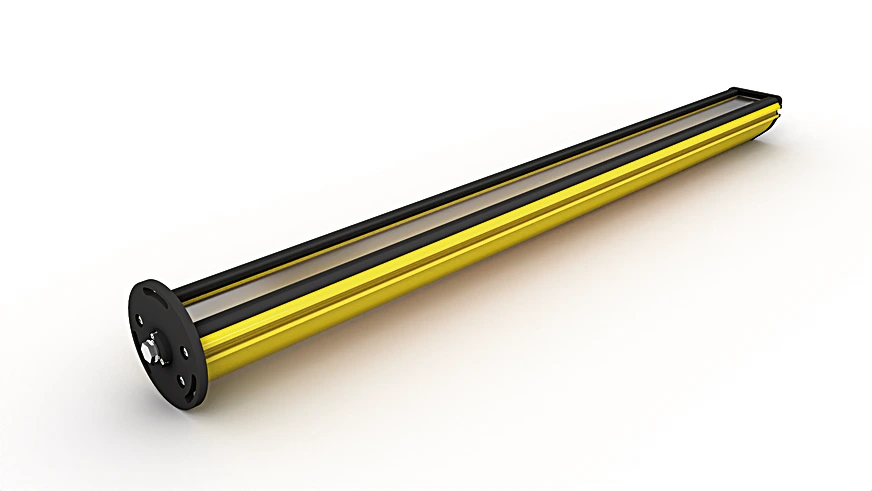

Wenglor Z2SU001 Protection Column with deflection mirror

Protection Column with deflection mirror.

$634.00
Part Number
  • Z2SU001
Highlights...

Features

  • Effective protection against mechanical damage
  • Simple alignment via innovative mounting feature
  • Flexible installation: install on the ground or walls
  • Integrated slot for muting sets
  • Housing Material: Aluminum, powder-coated / Plastic, PA / Plastic, PE
  • Optic Cover: Glass

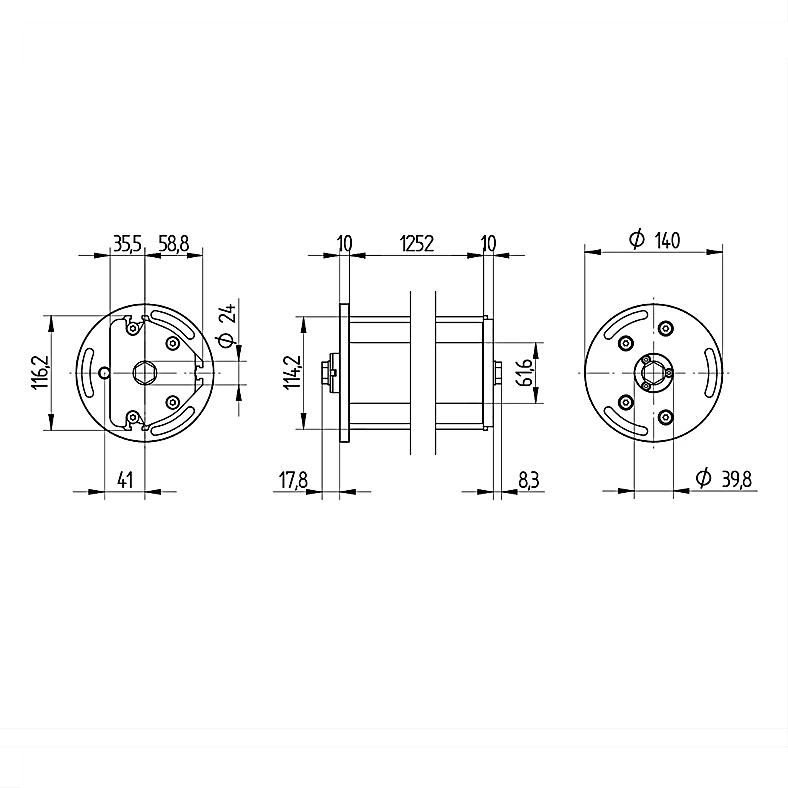

  • Mounting Space (EBR): 1,252 mm
  • Weight: 8,800 g
  • Scope of delivery: 1 × protection column
  • Complementary Products: Floor Mounting ZMBSZ0001, Wall Mounting ZMBSZ0002, Mounting Bracket BEF-SET-36, Mounting Bracket ZEMX002
The protection column for deflection mirrors provides secure protection against bumps, collisions and machines. Mirror columns are used in connection with safety light curtains or safety light arrays. They direct the beams from emitter to receiver along multiple sides of a system or machine. This can be used to efficiently secure entire areas with just one safety device. A freestanding setup is possible using the type ZMBSZ0001 floor mounting. The type ZMBSZ0002 wall mounting is suitable for horizontal setups.
