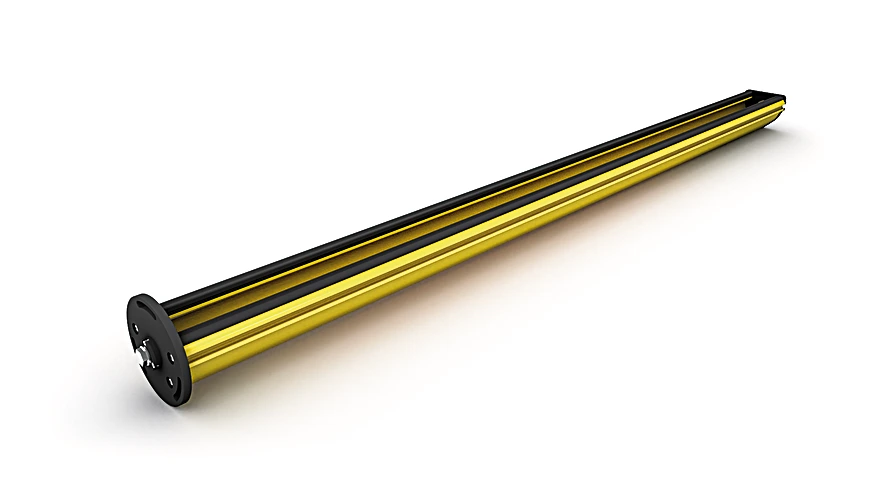

Wenglor Z2SM002 Protection Column for Muting

Protection Column for Muting.

$412.00
Part Number
  • Z2SM002
Highlights...

Features

  • Effective protection against mechanical damage
  • Simple alignment via innovative mounting feature
  • Flexible installation: install on the ground or walls
  • Integrated slot for muting sets
  • Housing Material: Aluminum, powder-coated / Plastic, PA / Plastic, PE
  • Disc Material: Polycarbonate
  • Cable Outlet: bottom/top

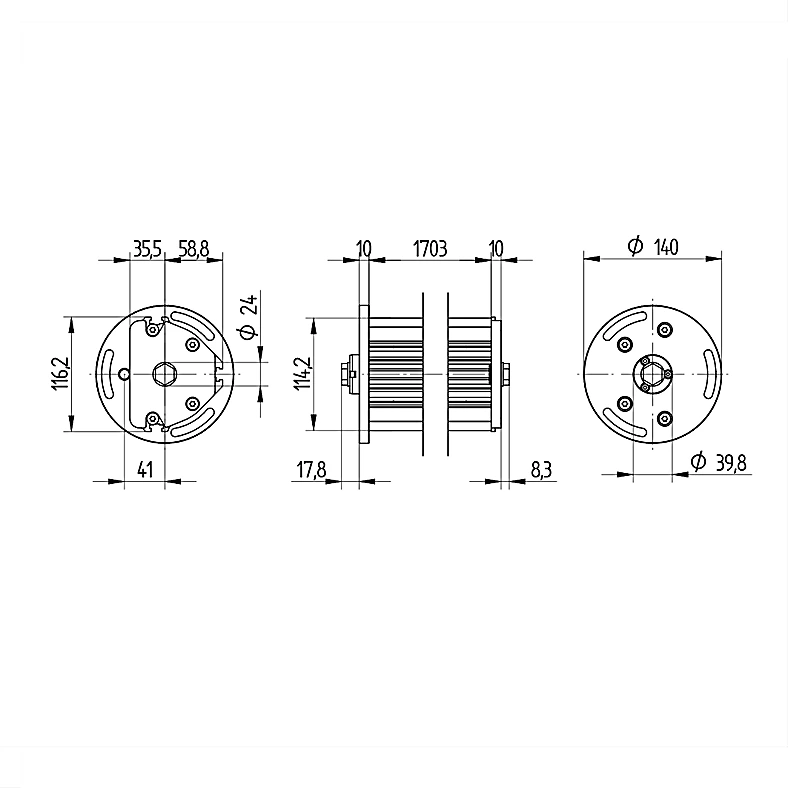

  • Mounting Space (EBR): 1,703 mm
  • Weight: 8,700 g
  • Scope of delivery: 1 × protection column
  • Complementary Products: Floor Mounting ZMBSZ0001, Wall Mounting ZMBSZ0002, Mounting Bracket BEF-SET-36, Mounting Bracket ZEMX002
The protection column without protective screen provides safety light curtains and multi-light arrays with reliable protection against bumps, collisions and machines. A freestanding setup is possible using the type ZMBSZ0001 floor mounting. The type ZMBSZ0002 wall mounting is suitable for horizontal setups. Axial or vertical alignment is possible with just a few turns of your hand thanks to the intelligent mounting technology and integrated level. One slot on the protection column simplifies installation and alignment of the various muting sets.
