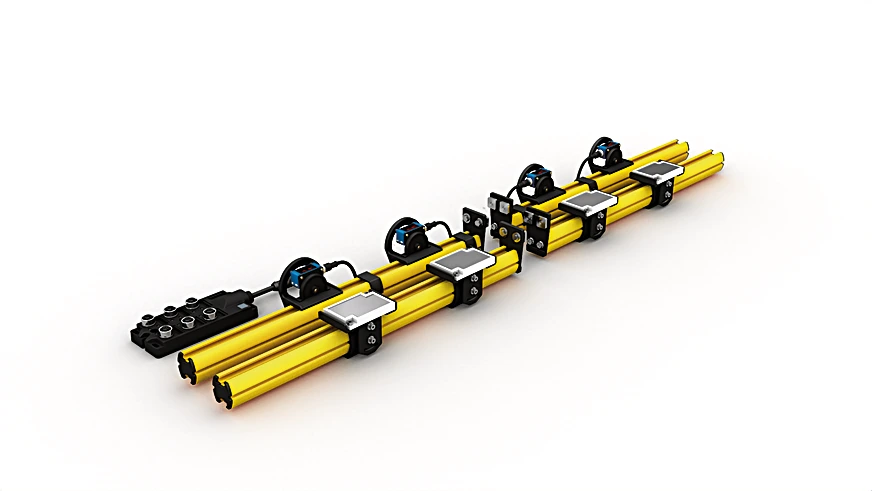

Wenglor Z2MG003 Muting Set 4 Sensors, Linear Muting

Muting Set 4 Sensors, Linear Muting.

$1,331.00
Part Number
  • Z2MG003
Highlights...

Features

  • Muting for safe transport to and from the danger zone
  • Plug & play thanks to the included connection box
  • Pre-assembled muting set for fast initial start-up
  • Muting set for 4-sensor linear muting
  • Temperature Range: -22°F to 140°F
  • Light Source: Red Light
  • Range: 0.01 to 3.5 m
  • Switching Frequency: 2,000 Hz
  • Housing Material: Aluminum
  • Connection: M12 × 1; 4-pin
  • Cable length (L): 1 m
  • Degree of Protection: IP67
  • Muting boom length: 400 mm
  • PNP NC: yes
  • Weight: 3,350 g
  • Scope of delivery: 1 × ZFBB001 connection box for muting sensors, 4 × ZMZG002 muting reflector systems, 4 × ZMZG001 muting sensor systems, 4 × ZMZG005 muting arm
  • Default settings: Pre-assembled
  • Muting type: 4-sensor linear muting
  • Muting sensor: 4 × P1KL020
  • Reflector: 4 × RE6040BA
  • Muting boom: 4 Pieces
The sensors are set up for 4-sensor linear muting with this pre-assembled muting set. It permits quick implementation of muting applications together with series SEFG safety light curtains or series SEFB multi-light arrays. Access protection for transporting long objects to and from the danger zone can be implemented safely and efficiently with the 4-sensor linear muting set.
