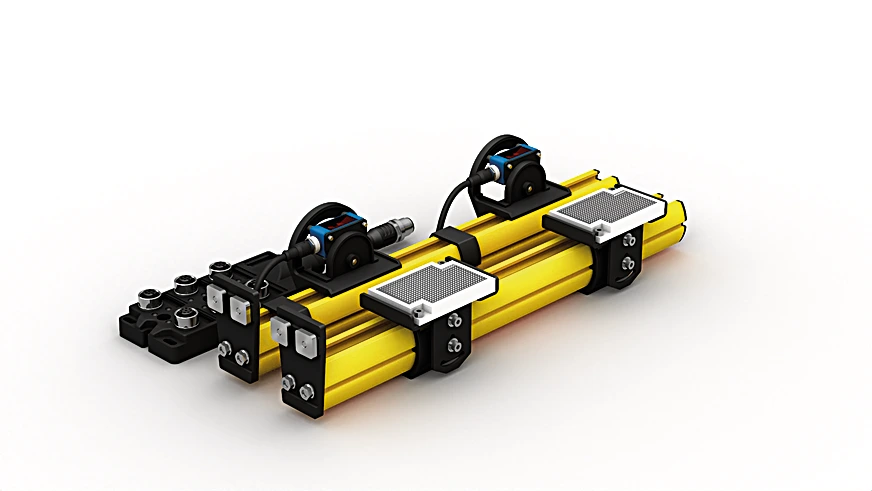

Wenglor Z2MG002 Muting Set 2 sensors, linear muting

Muting Set 2 sensors, linear muting.

$893.00
Part Number
  • Z2MG002
Highlights...

Features

  • Plug & play thanks to the included connection box
  • Pre-assembled muting set for fast initial start-up
  • Muting set for 2-sensor linear muting
  • Muting for safe transport out of the danger zone
  • Temperature Range: -22°F to 140°F
  • Light Source: Red Light
  • Range: 0.01 to 3.5 m
  • Switching Frequency: 2,000 Hz
  • Housing Material: Aluminum
  • Connection: M12 × 1; 4-pin
  • Cable length (L): 1 m
  • Degree of Protection: IP67
  • Muting boom length: 300 mm
  • PNP NC: yes
  • Weight: 1,300 g
  • Scope of delivery: 1 × ZFBB001 connection box for muting sensors, 2 × ZMZG002 muting reflector system, 2 × ZMZG001 muting sensor systems, 2 × ZMZG005 muting arm
  • Default settings: Pre-assembled
  • Muting type: 2-sensor linear muting
  • Muting sensor: 2 × P1KL020
  • Reflector: 2 × RE6040BA
  • Muting boom: 2 Pieces
The sensors are set up for 2-sensor linear muting with this pre-assembled muting set. This permits quick implementation of muting applications together with series SEFG safety light curtains or series SEFB multi-light arrays. Access protection for transport out of the danger zone can be implemented safely and efficiently with the 2-sensor linear muting set.
