Wenglor Z1KE002 Mounting for 32 × 16 × 12 mm (1K)

Mounting for 32 × 16 × 12 mm (1K).

$8.10
Part Number
  • Z1KE002
Highlights...

Features

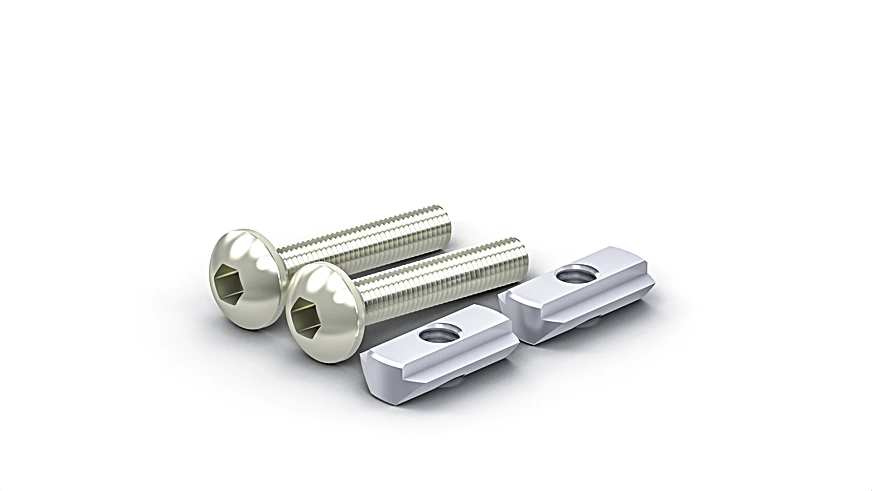

  • Included: 2 × slot nuts, 2 × M3 × 14 mm screws
  • Suitable for installing the 1K format on ZBPW mounting profiles
  • Thread: M3
  • Length: 14 mm
  • Mounting type, device-side: Screwable with slot nut
  • Mounting type, system-side: Mounting profile
  • Material: Stainless Steel
  • For edge length: 10 × 10 mm
  • Weight: 3 g
  • Scope of delivery: 2 × slot nuts; 2 × screws (M3×14), 2 × M3 screws × 14 mm
  • Packaging unit: 1 Piece
  • Use: For mounting profile

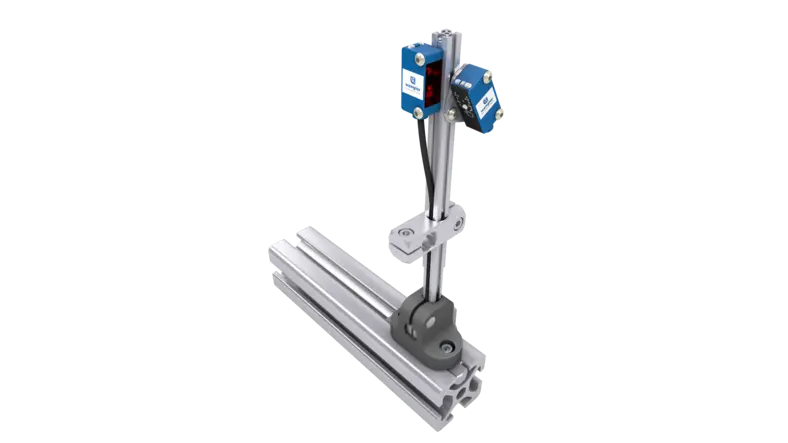

The mounting is suitable for direct mounting on the mounting profile. The slot nuts are inserted into the T-slot, and the sensor or reflector is screwed on with oval head screws.
