Wenglor Z1KC003 Mounting for 32 × 16 × 12 mm (1K)

Mounting for 32 × 16 × 12 mm (1K).

$10.60
Part Number
  • Z1KC003
Highlights...

Features

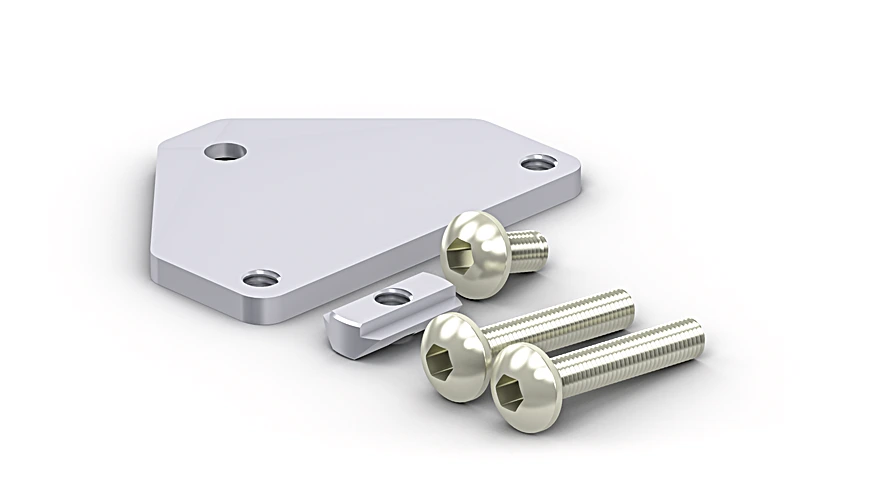

  • Included: 1 × adapter plate, 1 × M3×4 screw, 1 × slot nut, 2 × M3×14 screws

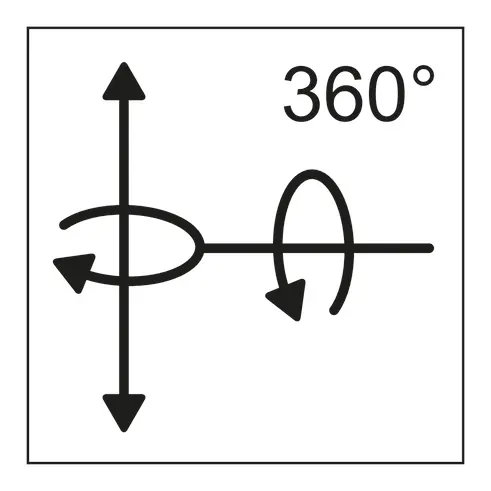

  • Flexible alignment options
  • Suitable for installing the 1K format on ZBPW mounting profiles

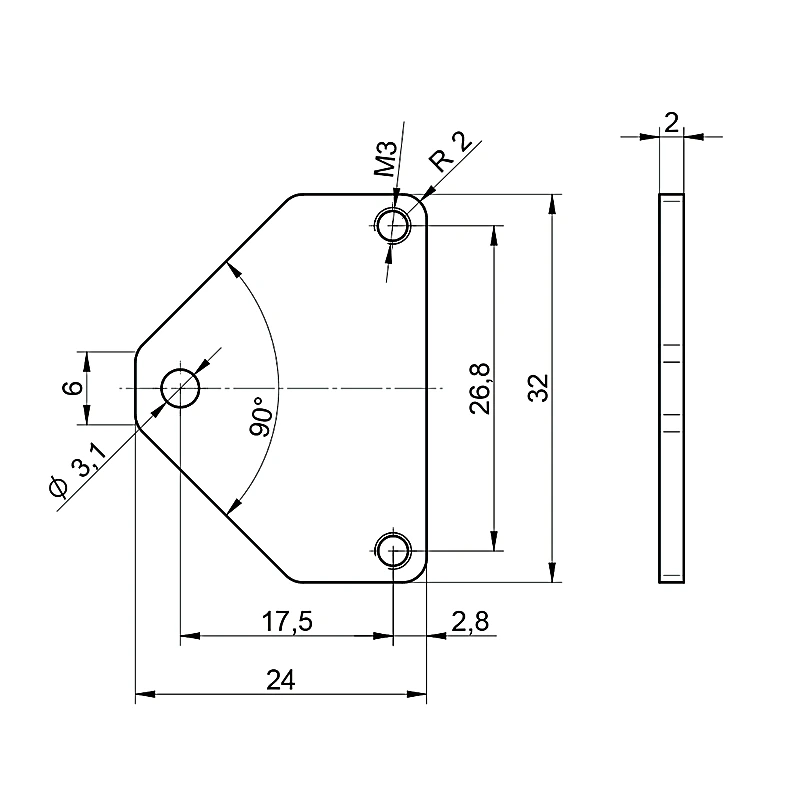

  • Diameter: 3.1 mm
  • Thread: M3
  • Length: 14 mm
  • Mounting type, device-side: Screwable to mounting plate
  • Mounting type, system-side: Mounting profile
  • Material: Aluminum, anodised / Stainless steel, 304
  • Surface treatment: Clear anodized

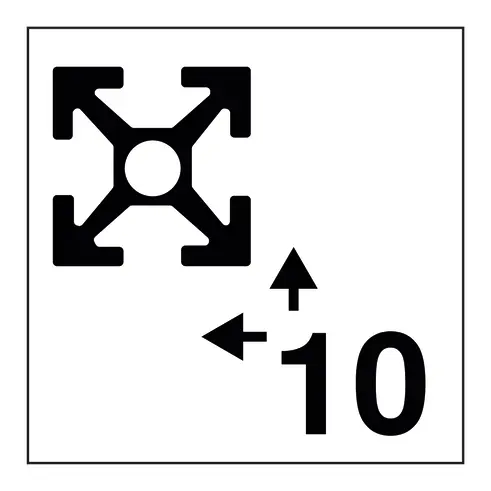

  • For edge length: 10 × 10 mm
  • Sensor tightening torque: 0,3 Nm
  • Weight: 7 g
  • Scope of delivery: 1 × M3 screw × 4 mm, 1 × adapter plate, 1 × slot nut
  • Packaging unit: 1 Piece
  • Use: For mounting profile

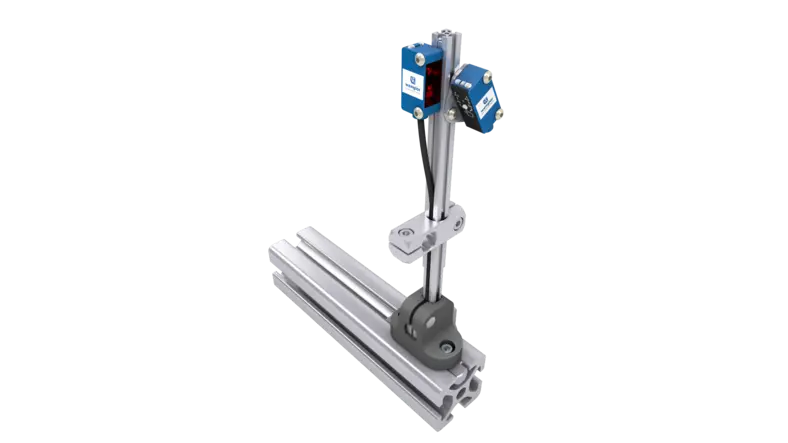

The mounting offers flexible alignment options thanks to an adapter plate. The miniature design is fastened to the adapter plate with oval head screws. The adapter plate is fastened to the mounting profile with a slot nut and oval head screw.
