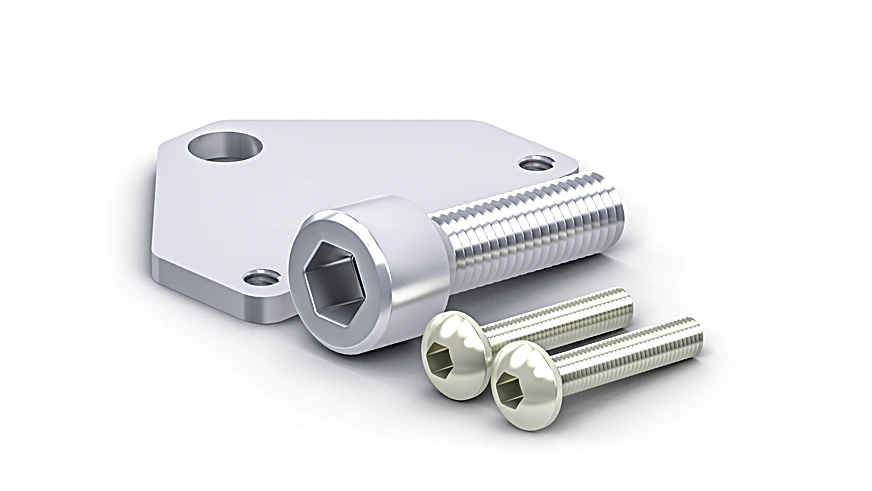

Wenglor Z1KC002 Mounting for 32 × 16 × 12 mm (1K)

Mounting for 32 × 16 × 12 mm (1K).

$9.90
Part Number
  • Z1KC002
Highlights...

Features

  • Included: 1 × adapter plate, 1 × M5 screw, 2 × M3 screws
  • Suitable for mounting profiles and round bars in combination with the ZBSY004 mounting clamp
  • Flexible alignment options

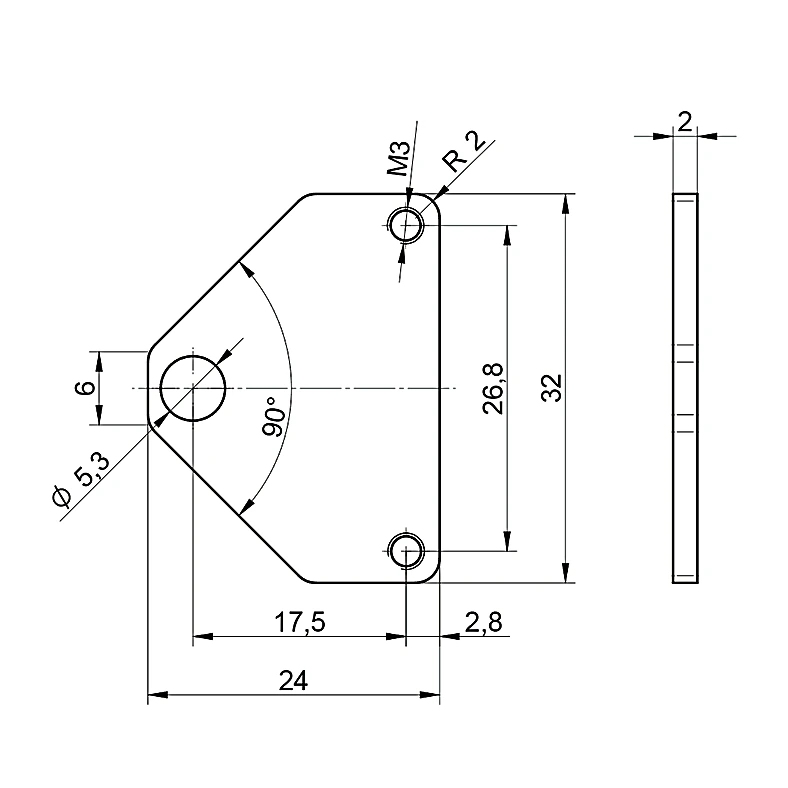

  • Diameter: 5.3 mm
  • Thread: M3
  • Mounting type, device-side: Screwable to mounting plate
  • Mounting type, system-side: Mounting profile
  • Material Mounting Plate: Aluminum, anodised
  • Screw material: Stainless Steel
  • Slot nut material: Stainless Steel
  • Surface treatment: Clear anodized

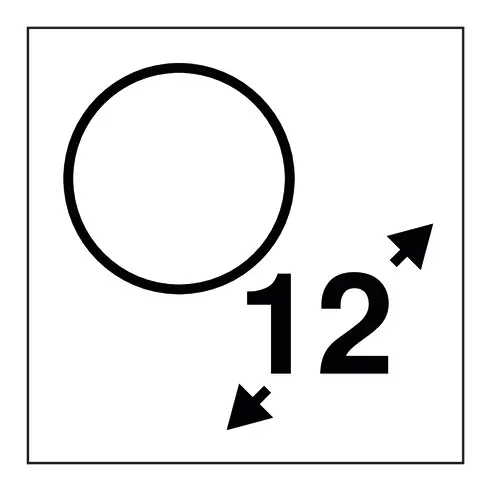

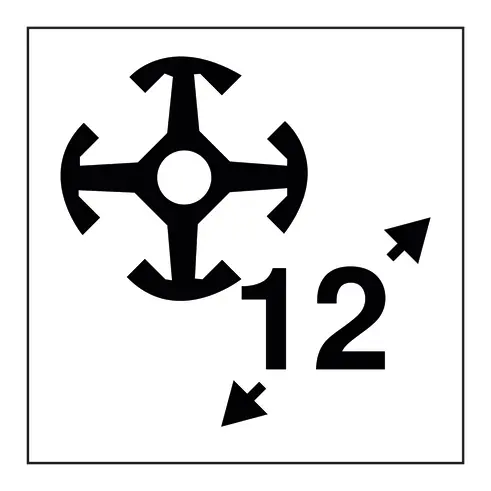

  • for Round Profile Diameter: 12 mm

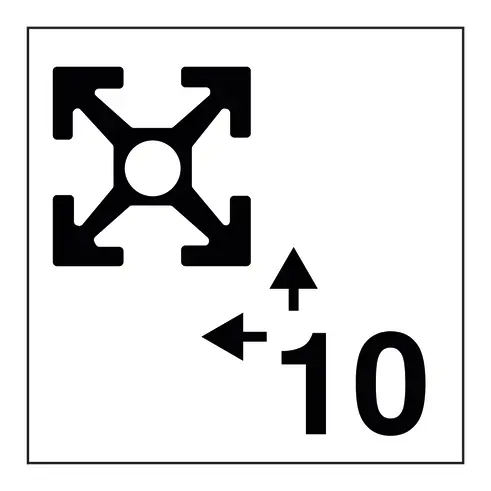

  • For edge length: 10 × 10 mm
  • Clamp retainer tightening torque: 3 Nm
  • Sensor tightening torque: 0,3 Nm
  • Weight: 8 g
  • Scope of delivery: 1 × adapter plate, 1 × M5 screw, 2 × M3×14 screws
  • Packaging unit: 1 Piece
  • Use: For ZBSY004 mounting clamp
  • Complementary Products: ZBSY004 mounting clamp
The mounting offers flexible alignment options thanks to an adapter plate. The miniature design is fastened to the adapter plate with oval head screws. The adapter plate can be mounted on the ZBSY004 mounting clamp with M5 screws.
