Wenglor Z1KC001 Mounting for reflectors with M3 mounting holes

Mounting for reflectors with M3 mounting holes.

$20.10
Part Number
  • Z1KC001
Highlights...

Features

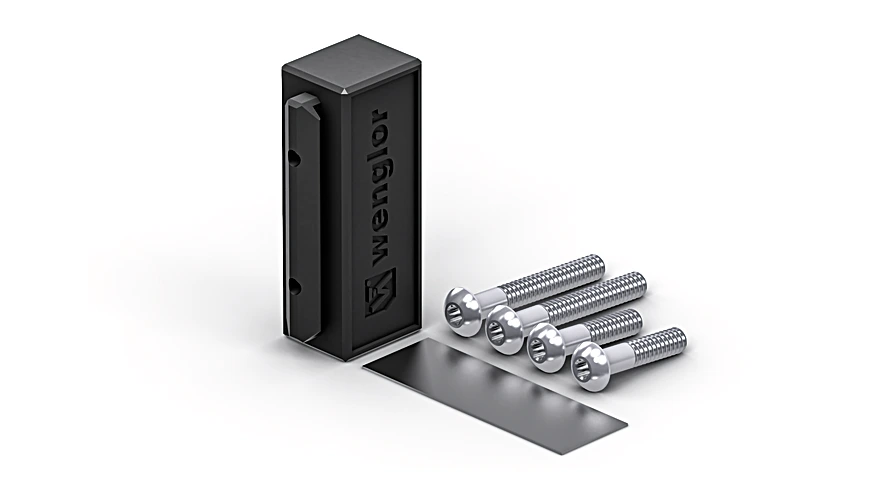

  • Included: 1 × adapter block, 1 × reflector foil piece, 2 × M3 × 14 mm screws, 2 × M3 × 18 mm screws
  • Double use as sensor and reflector holder possible
  • Easy handling
  • Thread: M3
  • Mounting type, device-side: can be screwed / self-adhesive

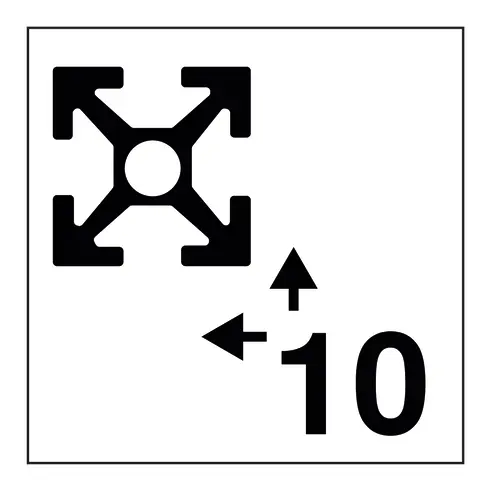

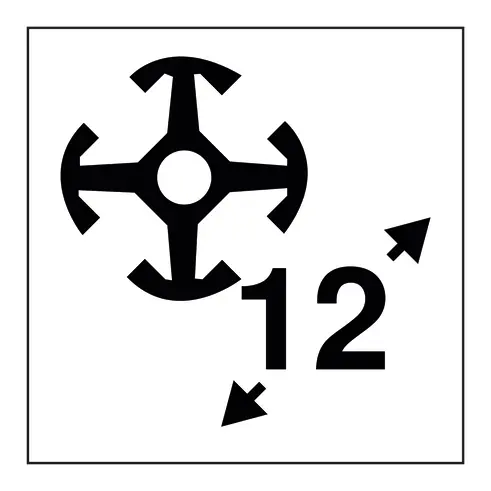

  • Mounting type, system-side: Mounting profile
  • Material: Plastic, PA / Steel, galvanized
  • Structure: Continuous Structure
  • Weight: 8 g
  • Scope of delivery: 1 × adapter block, 1 × reflector foil, 2 × M3 screws × 14 mm
  • Packaging unit: 1 Piece
  • Use: For mounting profile, for Reflectors

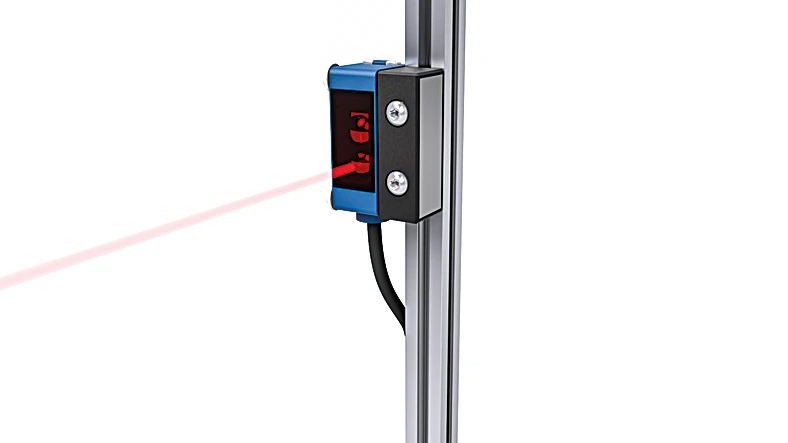

The mounting is suitable for direct mounting, as the adapter block has an elongated T-slot bar that can be inserted into the T-slot. The bar is clamped in the T-slot with self-tapping screws. The included reflector foil can be stuck onto the free side of the adapter block.
