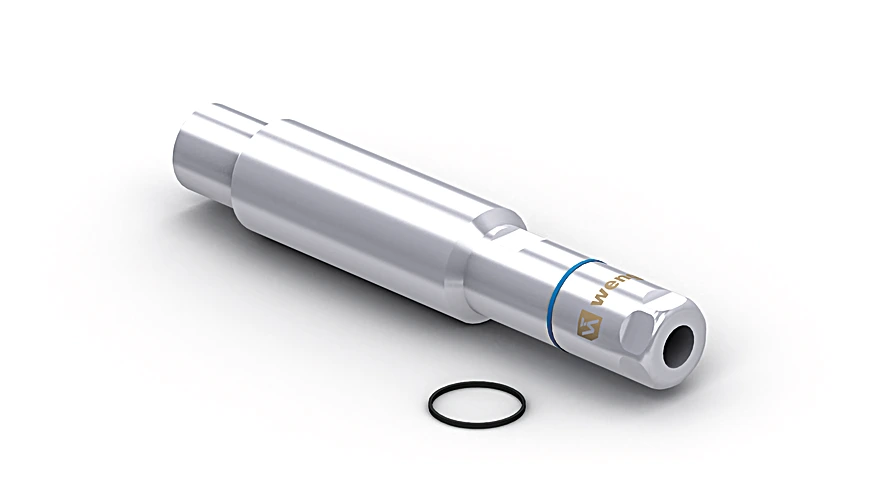

Wenglor Z1HT001 Mounting Tube for Stainless Steel Fork Sensor

Mounting Tube for Stainless Steel Fork Sensor.

$116.00
Part Number
  • Z1HT001
Highlights...

Features

  • Hygienic design makes it easy to clean
  • Resistant to cleaning agents
  • Waterproof (IP68/IP69K)
  • Made with food safe materials that are FDA approved
  • Mounting type, device-side: can be screwed
  • Mounting type, system-side: Mounting console/clamp
  • Material: Stainless steel, V4A (1.4404/316L) / Silicone (FDA)
  • Degree of Protection: IP68 / IP69K
  • with threaded cable gland IP68/IP69K: yes
  • For cable diameter: 3 to 6.5 mm
  • Weight: 144 g
  • Scope of delivery: 1 × mounting tube, 1 × sealing ring, 1 × sealing ring
  • Packaging unit: 1 Piece
  • Use: for round housing
  • Hygienic Design: X
  • Detergent resistant: X
This complete system, which integrates seamlessly into the machine, also includes the mounting tubes. They are made of corrosion- and detergent-resistant 316L stainless steel (1.4404/V4A) and protect every standard connection line with IP68/IP69K degree of protection.
