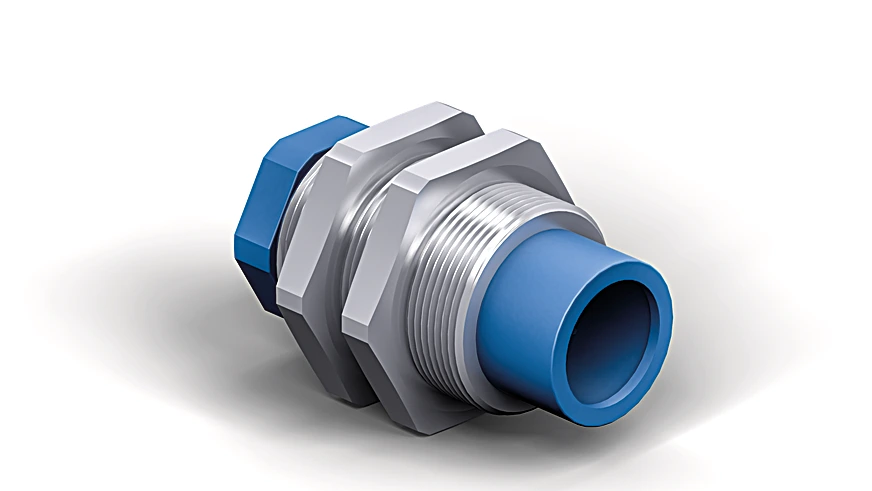

Wenglor Z18M003 Mounting Console with Fixed Limit Stop for M18 × 1; Non-Flush Mounting

Mounting Console with Fixed Limit Stop for M18 × 1; Non-Flush Mounting.

$22.80
Part Number
  • Z18M003
Highlights...

Features

  • Integrated, fixed limit stop for precise sensor positioning
  • Time savings thanks to easy installation
  • No reduction of the switching distance
  • For M18 x 1, non-flush
  • Material: Stainless steel, V2A (1.4305/303) / Plastic, PBT
  • Mounting: Non-flush
  • Threaded sleeve tightening torque: max. 4 Nm
  • Clamp retainer tightening torque: 3 Nm
  • Weight: 46 g
  • Scope of delivery: 1 × mounting console
  • Packaging unit: 1 Piece
  • Use: for threaded housing
