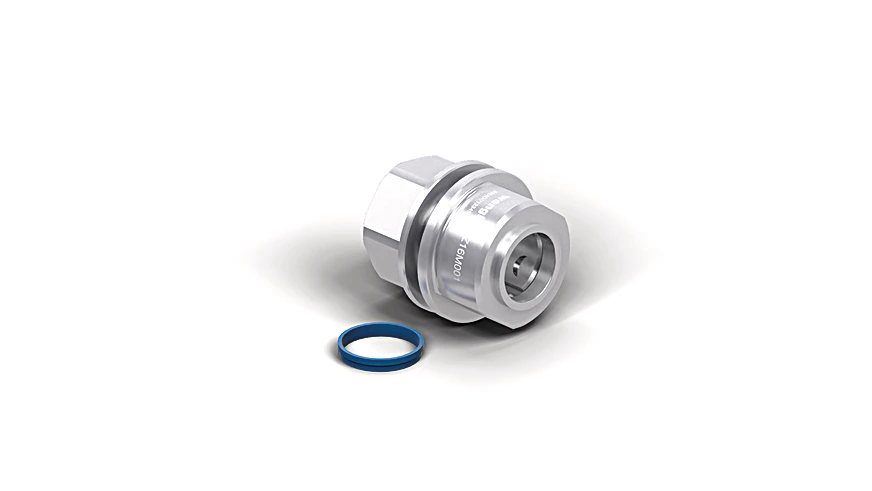

Wenglor Z16M001 Mounting Console for Ø 16…17.8 mm (OHII/OKI/U2GT)

Mounting Console for Ø 16…17.8 mm (OHII/OKI/U2GT).

$60.20
Part Number
  • Z16M001
Highlights...

Features

  • Hygienic design makes it easy to clean
  • Resistant to cleaning agents
  • Made with food safe materials that are FDA approved
  • Seamless integration of hygiene sensor directly into mounting console
  • For holes from > 24 mm to < 35 mm
  • Self-centering in M30 bore, thanks to integrated step in the threaded sleeve
  • Mounting type, device-side: Bayonet fastening
  • Mounting type, system-side: Mounting in through-hole / Mounting bracket
  • Material: Silicone (FDA) / Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP68 / IP69K
  • Weight: 124 g
  • Scope of delivery: 1 × mounting console
  • Packaging unit: 1 Piece
  • Use: for round housing
  • Hygienic Design: X
  • Detergent resistant: X
This complete system, which integrates seamlessly into the machine, includes numerous other components as well as the mounting console. The hygiene sensors and mounting tubes can be fed through the system's side panel with the aid of the mounting console and fastened there without any gaps.
