Wenglor Z0KE001 Mounting for 32/35.5 × 16/18.5 × 12/17 mm (1K/2K)

Mounting for 32/35.5 × 16/18.5 × 12/17 mm (1K/2K).

$7.40
Part Number
  • Z0KE001
Highlights...

Features

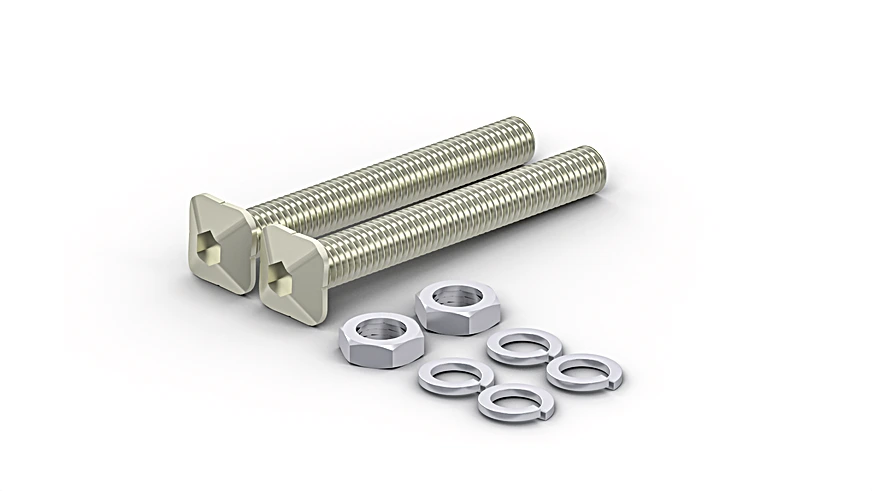

  • Included: 2 × M3 × 25 mm screws, 2 × M3 spring washers, 2 × washers, 2 × M3 nuts
  • Square screw head suitable for T-slot of ZBPW fixing profiles
  • Suitable for 1K/2K format

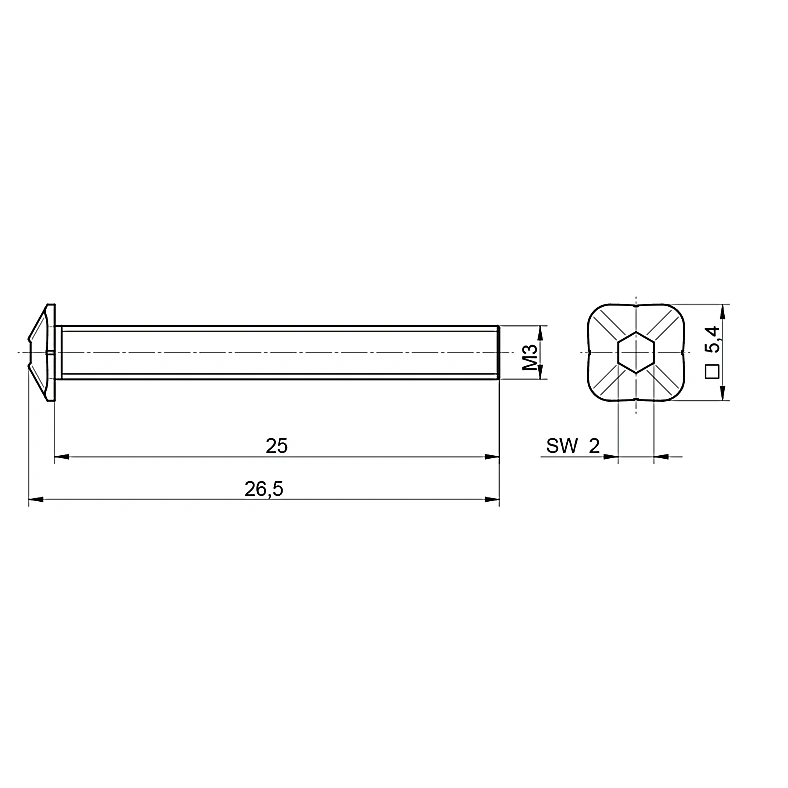

  • Thread: M3
  • Length: 25 mm
  • Mounting type, device-side: Screwable with slot nut screw
  • Mounting type, system-side: Mounting profile
  • Material: Stainless steel, 304

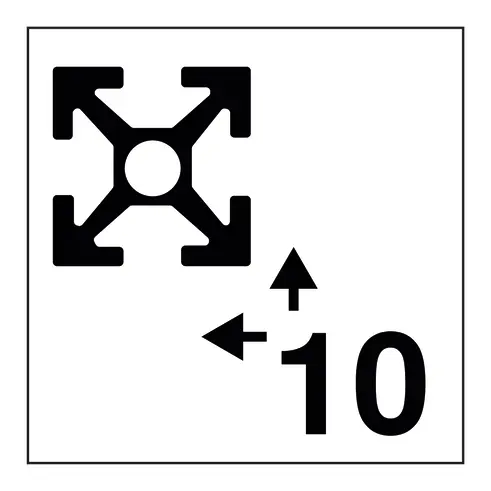

  • For edge length: 10 × 10 mm
  • Weight: 4 g
  • Scope of delivery: 2 × M3 spring washers, 2 × M3 slot nut screws × 25 mm, 2 × M3 hex nuts, 2 × M3 washers
  • Packaging unit: 1 Piece
  • Use: For mounting profile

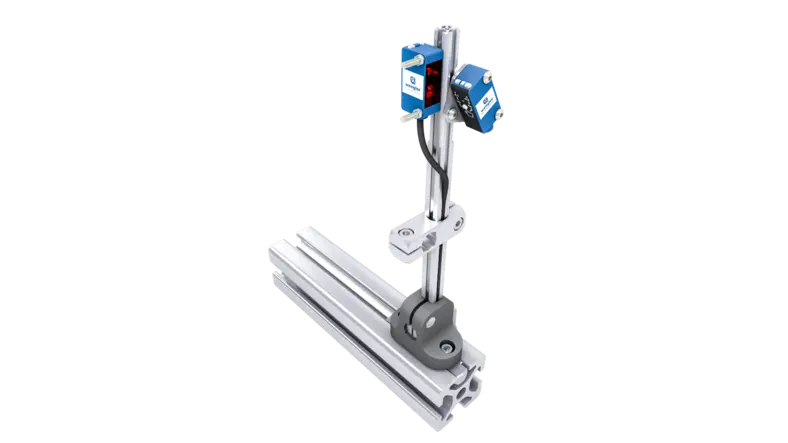

The mounting is suitable for direct mounting on the mounting profile. The screw heads of the slot nut screws are inserted into the T-slot, and the sensor or reflector is secured with a nut, washer, and spring washer.
