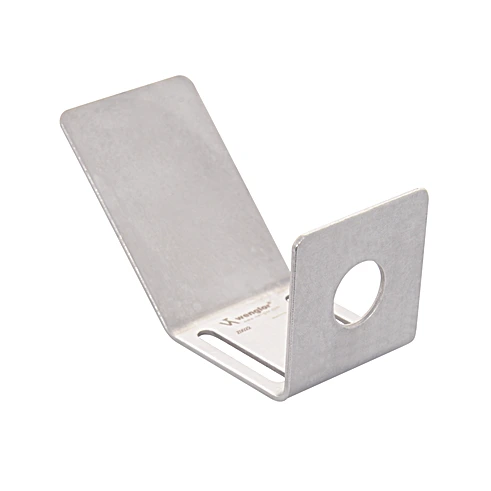

Wenglor Z0022 Baffle Plate for M18 × 1

Baffle Plate for M18 × 1.

$45.30
Part Number
  • Z0022
Highlights...

Features

  • For M18 × 1
  • Focussing the ultrasonic cone
  • Deflection about 90°
  • Material: Stainless steel, V2A (1.4301/1.4303)
  • Deflection about 90°: yes
  • Focusing the sonic cone: yes
  • Weight: 126 g
  • Scope of delivery: 1 × baffle plate
  • Packaging unit: 1 Piece
Use of the baffle plate does not influence the range of the ultrasonic sensors. Due to focusing, the sonic cone becomes roughly 3° narrower. The mounting clearance between the sensor's active surface and the baffle plate must be subtracted from the sensor's maximum range.
