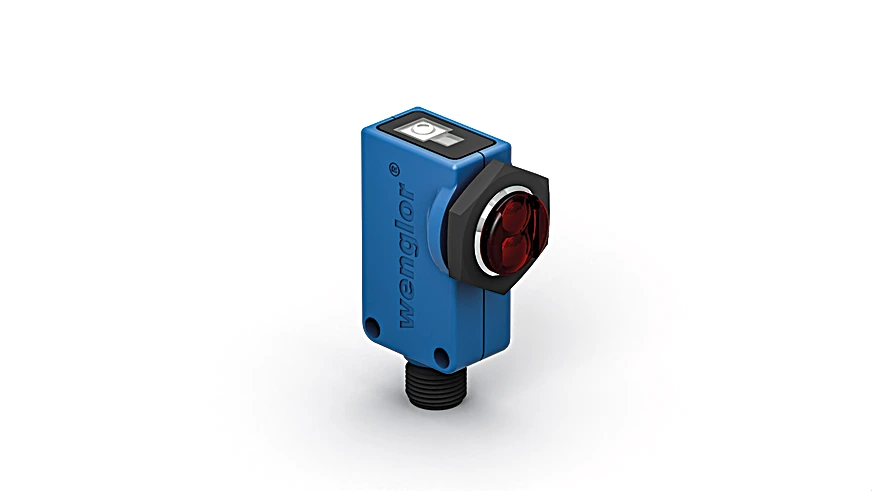

Wenglor YR24PCT2 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$414.00
Part Number
  • YR24PCT2
Highlights...

Features

  • Spot diameter: 0,5 mm
  • Electronic background suppression
  • Simple installation
  • Teach-in, external teach-in
  • Range: 150 mm
  • Setting Range: 35 to 150 mm
  • Switching Hysteresis: < 10 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 1,100 Hz
  • Response Time: 455 µs
  • On-/Off-Delay (RS-232): 0 to 1 s

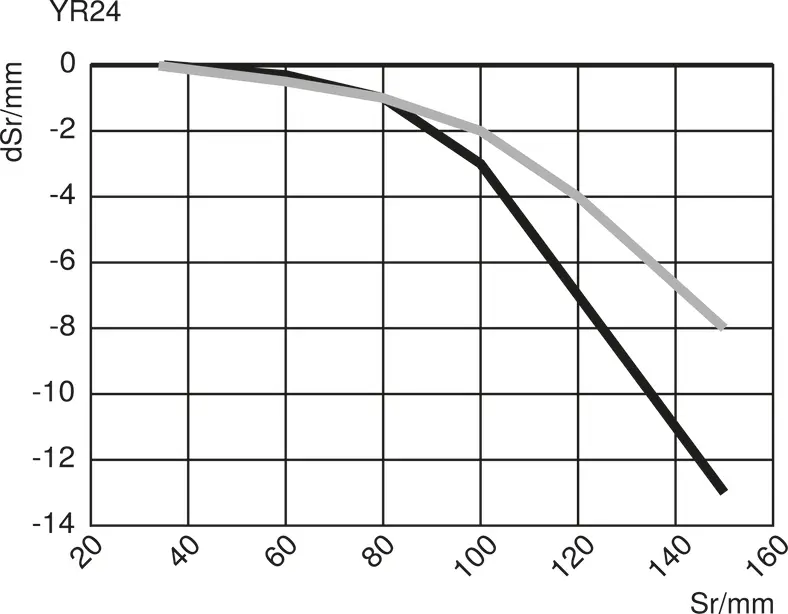

  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: HT, VT
  • Protection Class: III
  • FDA Accession Number: 0820372-000
  • Setting Method: Teach-In
  • Housing Material: Plastic, PBT, Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 28 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • PNP NO: yes
  • RS-232 with Adapterbox: yes
  • External teach-in input: yes
  • Circuit: NC, NC/NO, NO
  • Detection Range: 50 mm, 100 mm, 150 mm
  • Light Spot Diameter: 1,2 mm, < 0,5 mm, 1,5 mm
  • Complementary Products: Adapterbox A232, Dust Extraction Tube STAUBTUBUS-01, PNP-NPN Converter BG2V1P-N-2M, Software

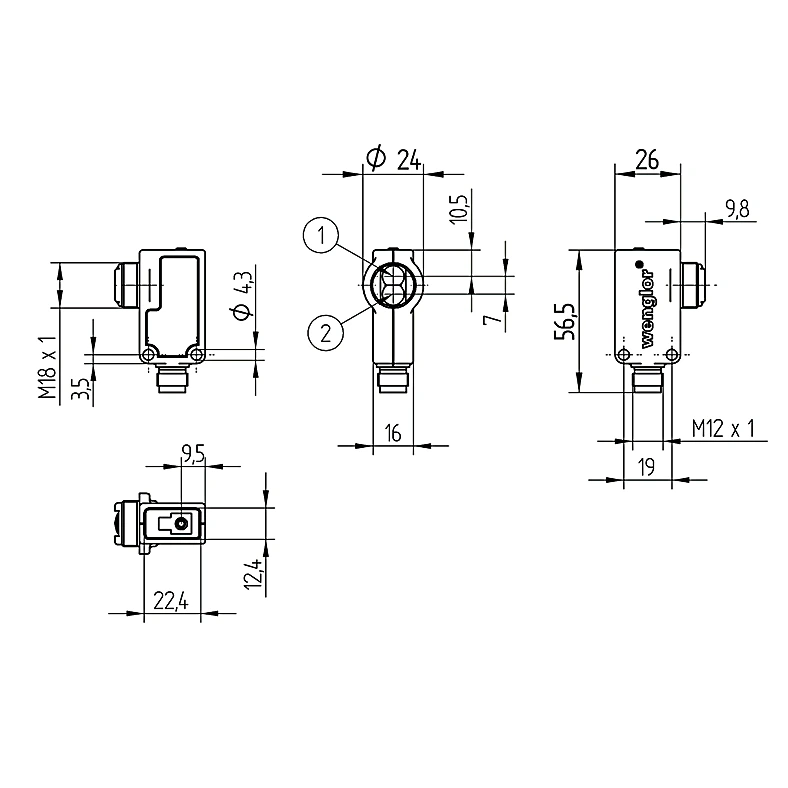

These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance. The sensor is easy to install with its integrated M18 threaded fixation, and can be easily protected as well.
