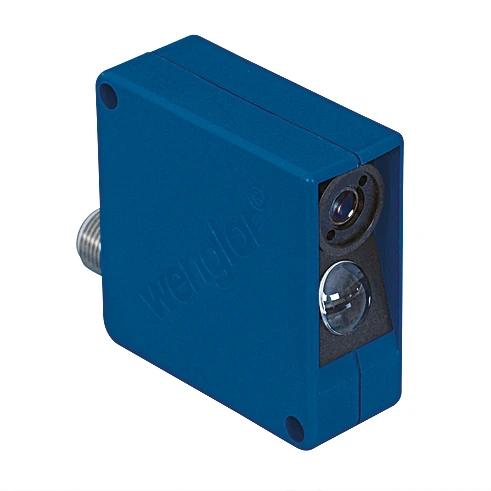

Wenglor YP11VAH3ABF Contrast Sensor

Contrast Sensor.

$613.00
Part Number
  • YP11VAH3ABF
Highlights...

Features

  • Light spot can be focused
  • Switching frequency: 20 kHz
  • Adjustable time delay
  • Range: 100 mm

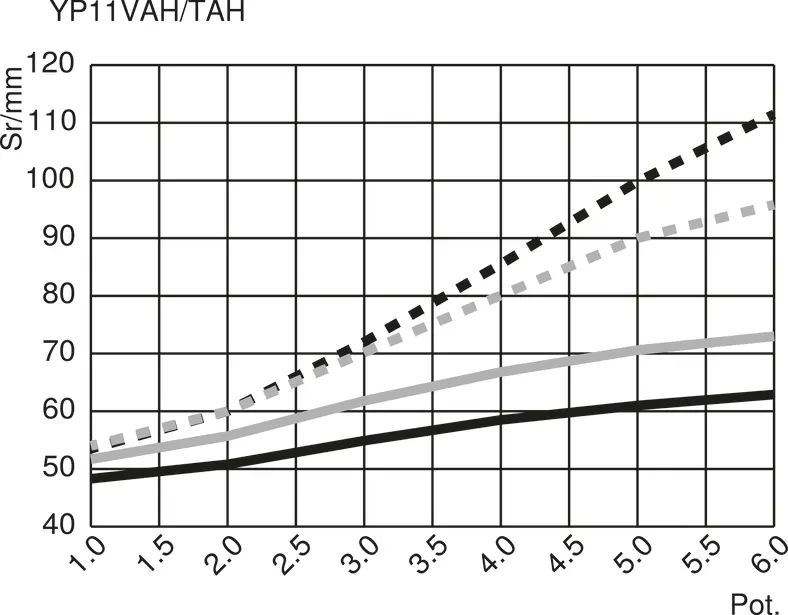

  • Setting Range: 60 to 100 mm
  • Switching Hysteresis (Lateral Approach): < 50 µm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 0.8 mm
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 20 kHz
  • Response Time: 25 µs
  • Off-Delay: 0 to 200 ms
  • Temperature Drift: < 1 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 0820518-000

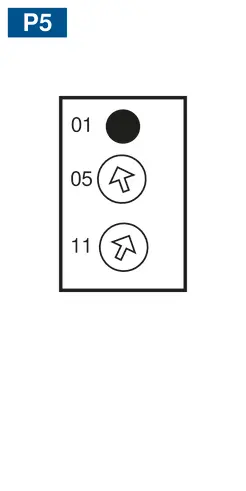

  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS, Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP65
  • Connection: M12 × 1; 4-pin
  • Weight: 110 g
  • Scope of delivery: 1 × E1L adjustment key, 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • PNP NC, PNP NO: yes
  • Complementary Products: Protective Housing ZSV-0x-01, PNP-NPN Converter BG2V1P-N-2M, Dust extraction tube
These sensors are especially well suited for high speed recognition of contrast differences.
