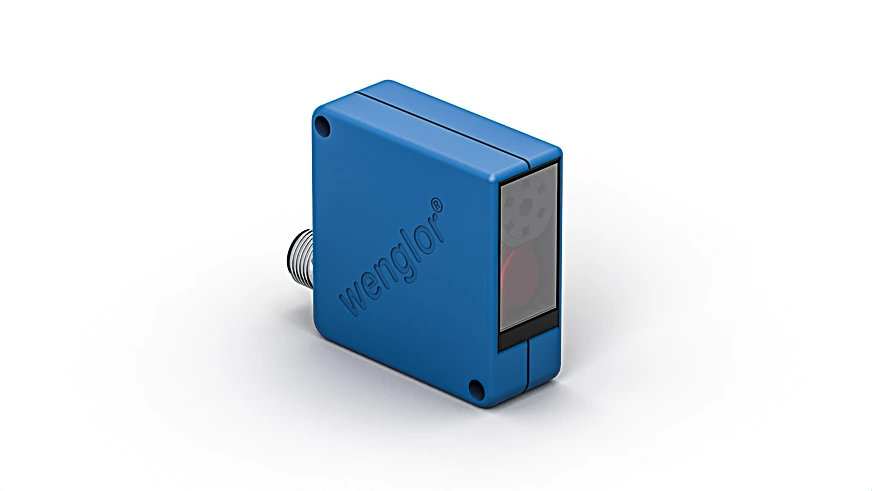

Wenglor YP11MVV80 Contrast Sensor

Contrast Sensor.

$1,526.00
Part Number
  • YP11MVV80
Highlights...

Features

  • Analog output (0 to 10 V DC)
  • Switching frequency: 10 kHz
  • Working Range: 50 to 100 mm
  • Measuring Range: 50 mm
  • Resolution: 20 mV
  • Switching Hysteresis: 200 mV
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 0.5 mm
  • at a Distance of: 100 mm
  • Supply Voltage: 18 to 30 V DC
  • Cut-Off Frequency: 10 kHz
  • Response Time: 50 µs
  • Temperature Drift: 10 mV/K
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: 1.5 V DC
  • PNP Switching Output/Switching Current: 200 mA
  • Analog Output: 0 to 10 V
  • Short Circuit Protection: yes
  • Overload Protection: yes
  • Protection Class: III

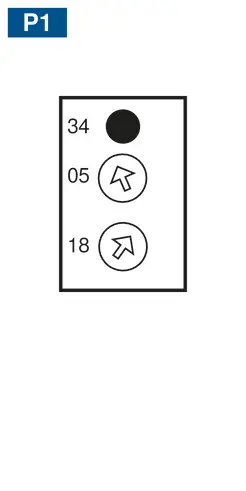

  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS, Plastic, PBT
  • Optic Cover: Glass
  • Full Encapsulation: yes
  • Degree of Protection: IP67

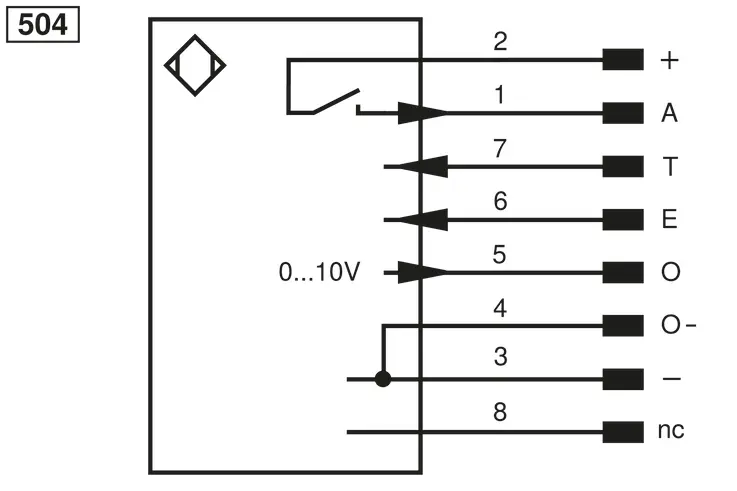

  • Connection: M12 × 1; 8-pin
  • Weight: 91 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • PNP NO: yes
  • Analog Output: yes
  • Complementary Products: IO-Link converter, Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, Dust extraction tube
These sensors are especially well suited for high speed indication of contrast differences by means of an analog output voltage.
