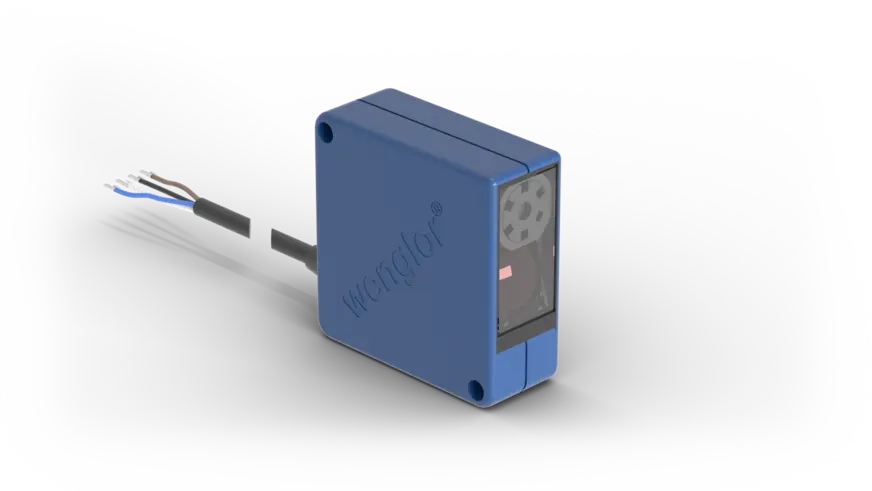

Wenglor YP11MGV-P24 Laser Distance Sensor Triangulation

Features

• Linearity: 0,5 %
• Measuring range: 50 mm
• Cut-off frequency up to 1 kHz
• Working Range: 50 to 100 mm
• Measuring Distance: 75 mm
• Measuring Range: 50 mm
• Resolution: 100 µm
• Linearity: 0.5 %

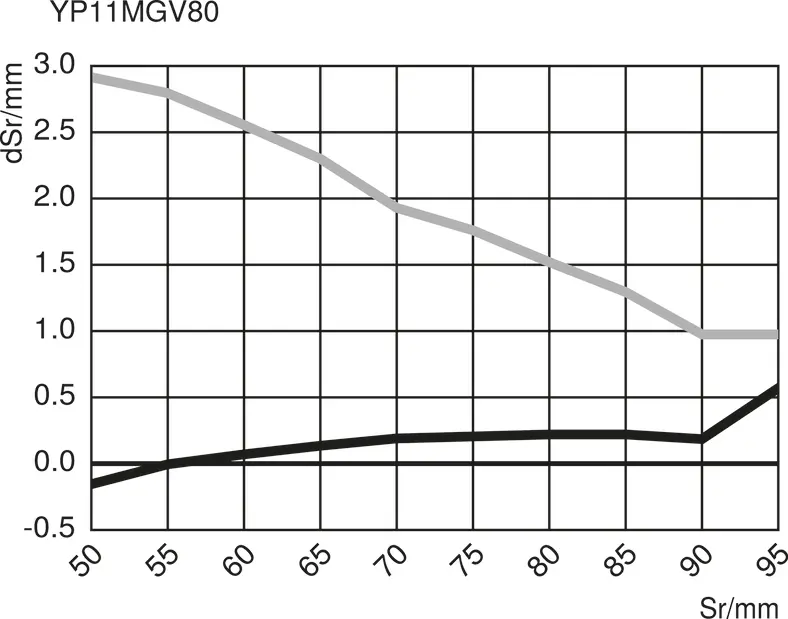

• Linearity Deviation: 250 µm
• Light Source: Laser (red)
• Wavelength: 660 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: 1 mm
• Supply Voltage: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Cut-Off Frequency: 1 kHz
• Response Time: 500 µs
• Temperature Drift: 20 µm/K
• Temperature Drift (+10…104°F): 10 µm/K
• Temperature Range: 14°F to 140°F
• Error Output Voltage Drop: < 2.5 V
• PNP Error Output/Switching Current: 200 mA
• Analog Output: 0 to 10 V
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Plastic, PBT
• Optic Cover: Glass
• Full Encapsulation: yes
• Degree of Protection: IP67

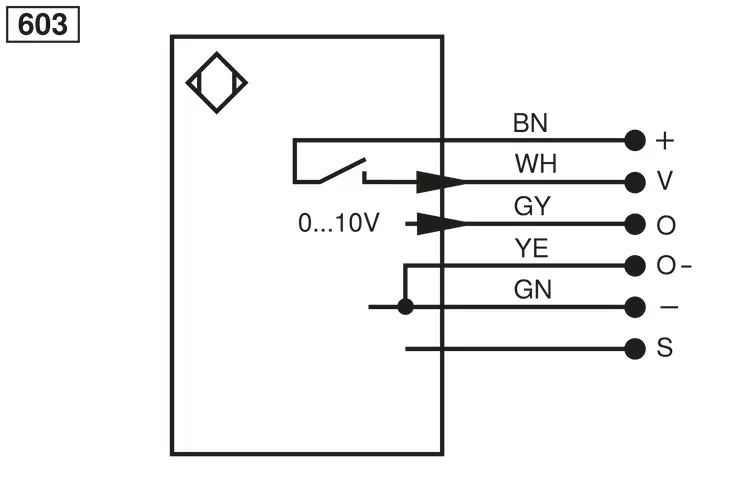

• Connection: Cable; 6-wire
• Cable length (L): 6 m
• Wire cross-section: 0.25 mm²
• Weight: 397 g
• Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
• Error Output: yes
• Analog Output: yes
• Complementary Products: Analog Evaluation Unit AW02, IO-Link converter
