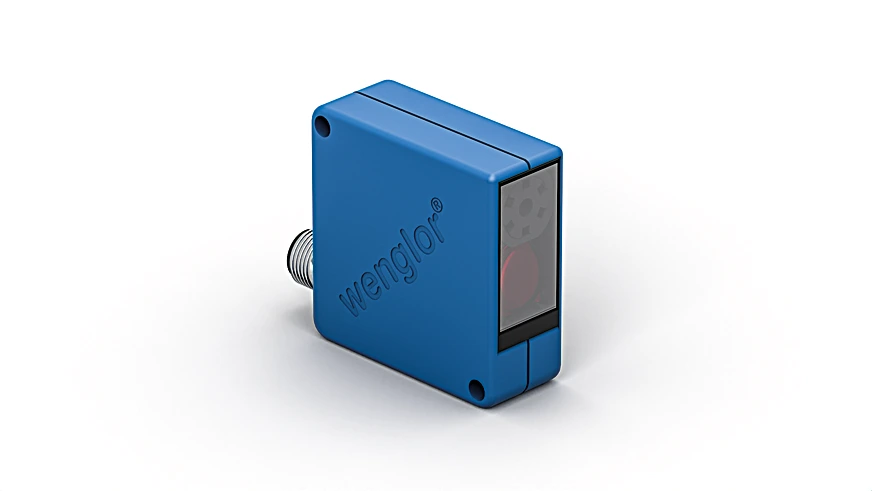

Wenglor YP11MGVL80 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$1,618.00
Part Number
  • YP11MGVL80
Highlights...

Features

  • Linearity: 0,5 %
  • Measuring range: 50 mm
  • Resolution up to 20 µm
  • Working Range: 50 to 100 mm
  • Measuring Distance: 75 mm
  • Measuring Range: 50 mm
  • Resolution: 25 µm

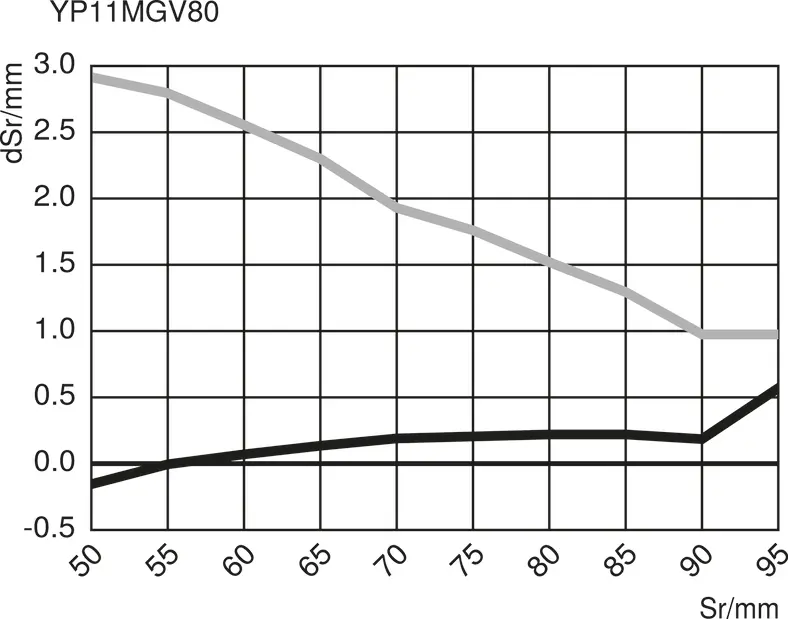

  • Linearity: 0.5 %
  • Linearity Deviation: 250 µm
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 1 mm
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Cut-Off Frequency: 100 Hz
  • Response Time: 5 ms
  • Temperature Drift (Tu < 50°F, Tu > 104°F): 20 µm/K
  • Temperature Drift (50°F < Tu < 104°F): 10 µm/K
  • Temperature Range: 14°F to 140°F
  • Error Output Voltage Drop: < 2.5 V
  • PNP Error Output/Switching Current: 200 mA
  • Analog Output: 0 to 10 V
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Plastic, PBT
  • Optic Cover: Glass
  • Full Encapsulation: yes
  • Degree of Protection: IP67

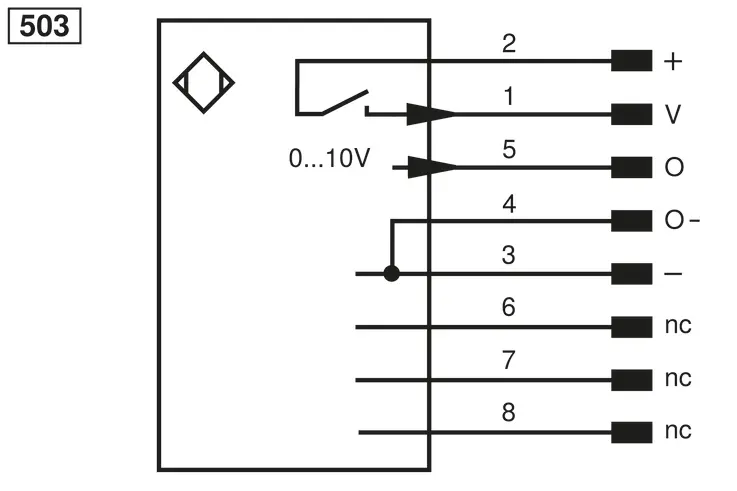

  • Connection: M12 × 1; 8-pin
  • Weight: 89 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • Error Output: yes
  • Analog Output: yes
  • Complementary Products: Analog Evaluation Unit AW02, IO-Link converter, Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, Dust extraction tube
These sensors can measure distances and display analog output. Their high resolution and wide variety of measuring ranges allow them to be used in innumerable applications. The output signal is practically independent of the object's color.
