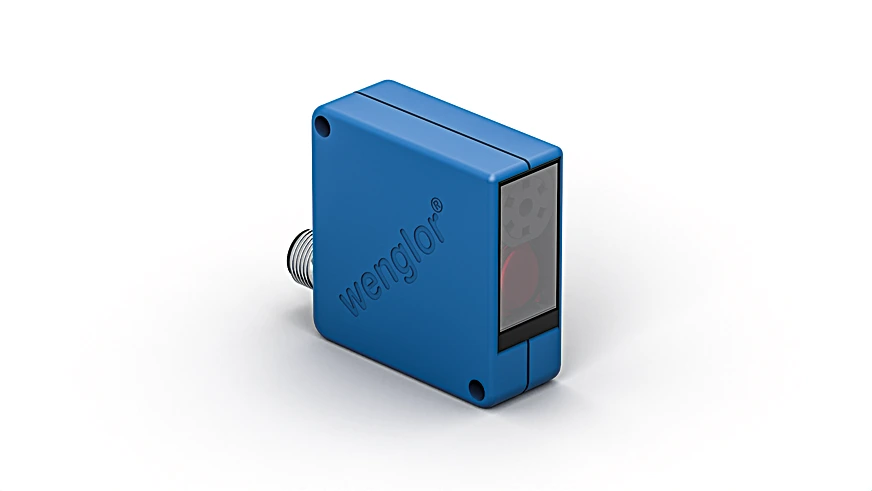

Wenglor YP09PBV3 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$910.00
Part Number
  • YP09PBV3
Highlights...

Features

  • Spot diameter: 0,8 mm
  • Smallest recognizable distance difference: 200 µm
  • Range: 100 mm
  • Setting Range: 60 to 100 mm
  • Switching Hysteresis: < 200 µm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 0.8 mm
  • Focus Distance: 110 mm
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 1,500 Hz
  • Response Time: 333 µs
  • Temperature Drift: < 15 µm/K
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • PNP Contamination Output/Switching Current: 50 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

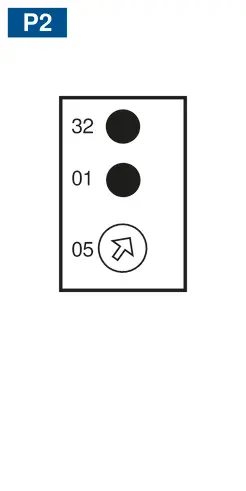

  • Setting Method: Potentiometer
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67

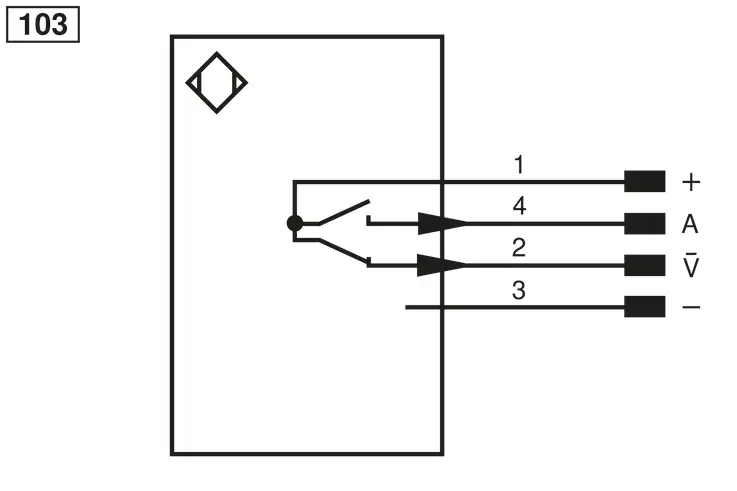

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Glass
  • Weight: 89 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • Contamination Output: yes
  • PNP NO: yes
  • Complementary Products: Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, PNP-NPN Converter BG2V1P-N-2M, Dust extraction tube
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
