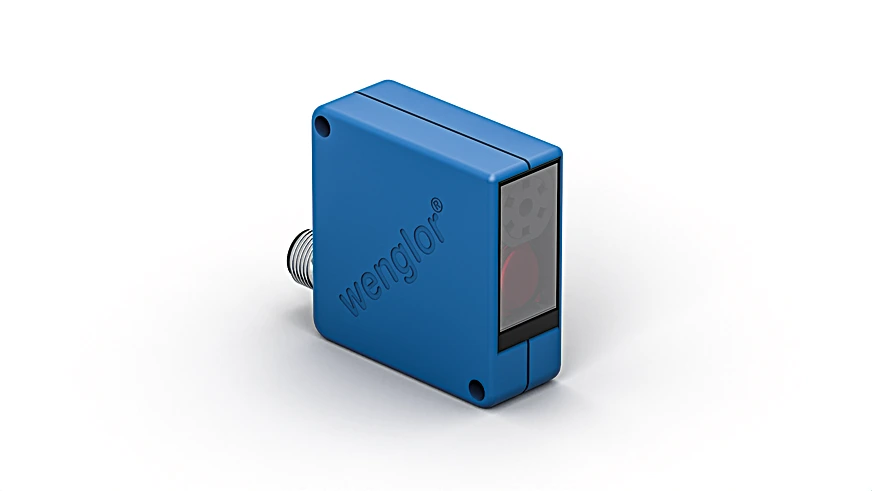

Wenglor YP06MGVL80 Laser Distance Sensor Triangulation

Features

• Resolution up to 5 µm
• Linearity: 0,5 %
• Measuring range: 20 mm
• Working Range: 40 to 60 mm
• Measuring Distance: 50 mm
• Measuring Range: 20 mm
• Resolution: 10 µm
• Linearity: 0.5 %

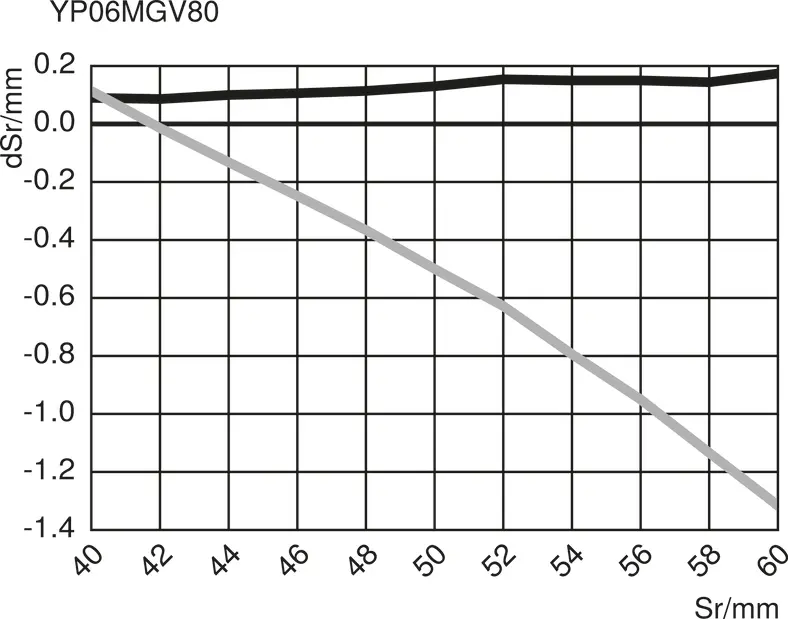

• Linearity Deviation: 50 µm
• Light Source: Laser (red)
• Wavelength: 655 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: 0.5 mm
• Supply Voltage: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Cut-Off Frequency: 100 Hz
• Response Time: 5 ms
• Temperature Drift (Tu < 50°F, Tu > 104°F): 10 µm/K
• Temperature Drift (50°F < Tu < 104°F): 7 µm/K
• Temperature Range: 14°F to 140°F
• Error Output Voltage Drop: < 2.5 V
• PNP Error Output/Switching Current: 200 mA
• Analog Output: 0 to 10 V
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Plastic, PBT
• Optic Cover: Glass
• Full Encapsulation: yes
• Degree of Protection: IP67

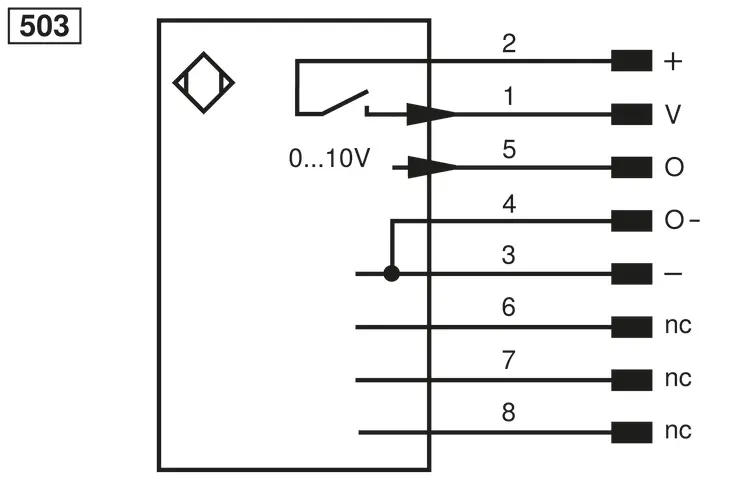

• Connection: M12 × 1; 8-pin
• Weight: 89 g
• Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
• Error Output: yes
• Analog Output: yes
• Complementary Products: Analog Evaluation Unit AW02, IO-Link converter, Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, Dust extraction tube
