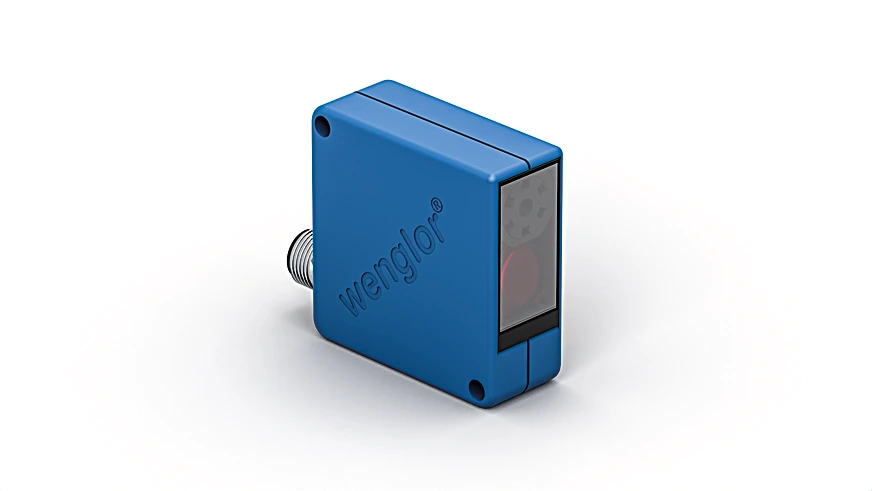

Wenglor YP05PA3 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$802.00
Part Number
  • YP05PA3
Highlights...

Features

  • Smallest recognizable distance difference: 50 µm
  • Spot diameter: 0,5 mm
  • Range: 55 mm
  • Setting Range: 45 to 55 mm
  • Switching Hysteresis: < 50 µm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 0.5 mm
  • Focus Distance: 75 mm
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 1,500 Hz
  • Response Time: 333 µs
  • Temperature Drift: < 5 µm/K
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

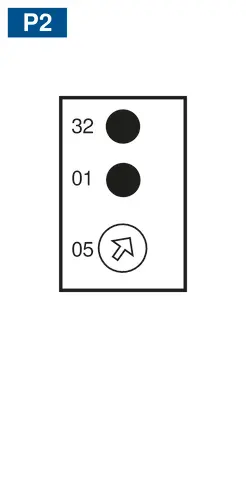

  • Setting Method: Potentiometer
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67

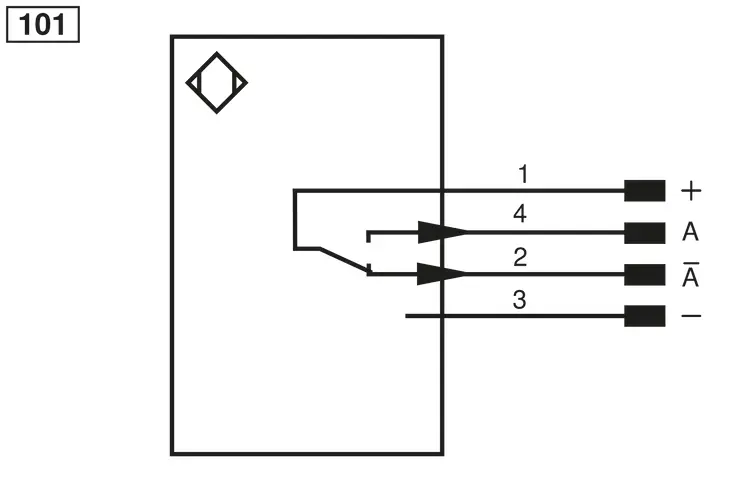

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Glass
  • Weight: 88 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • PNP NC, PNP NO: yes
  • Circuit: NC, NC+NO, NO
  • Complementary Products: Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, PNP-NPN Converter BG2V1P-N-2M, Dust extraction tube
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
