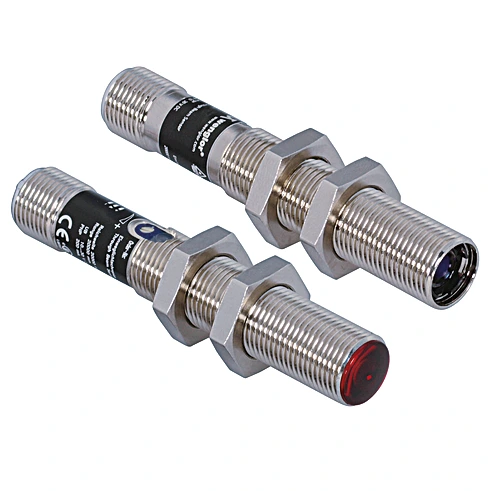

Wenglor YO99VD3 Through-Beam Sensor

Through-Beam Sensor.

$388.00
Part Number
  • YO99VD3
Highlights...

Features

  • Switching frequency: 5 kHz
  • Smallest recognizable part: 0,05 mm
  • Range: 20,000 mm

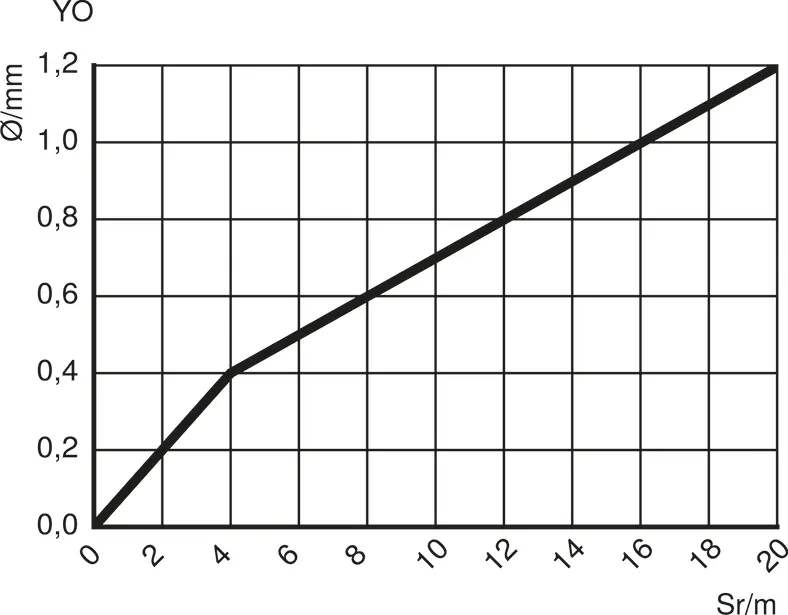

  • Smallest Recognizable Part: 50 µm
  • Switching Hysteresis: < 15 %
  • Light Source: Laser (red)
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 8 °
  • Sensor Type: Receiver
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 5 kHz
  • Response Time: 100 µs
  • Temperature Drift: < 10 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

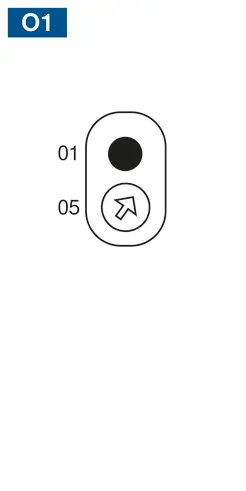

  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67

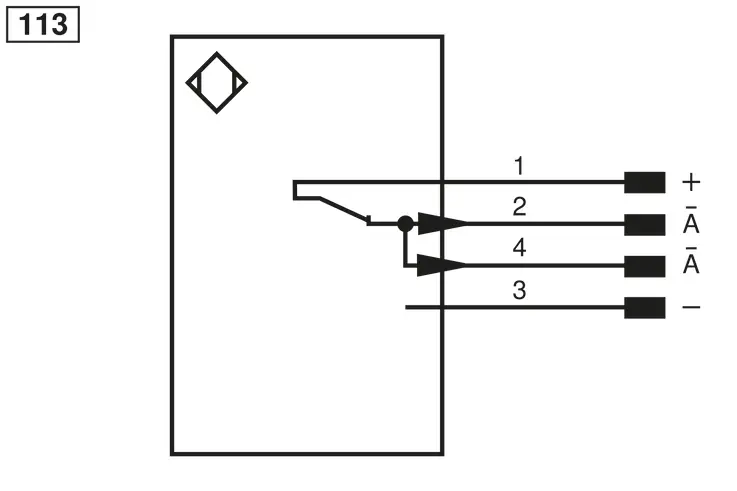

  • Connection: M12 × 1; 4-pin
  • Weight: 16 g
  • MTTFd (EN ISO 13849-1): 4,259.66 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M12-E001 hex nut, 1 × sensor
  • PNP NC: yes
  • Complementary Products: Path-Folding Mirror LA9, PNP-NPN Converter BG2V1P-N-2M
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
