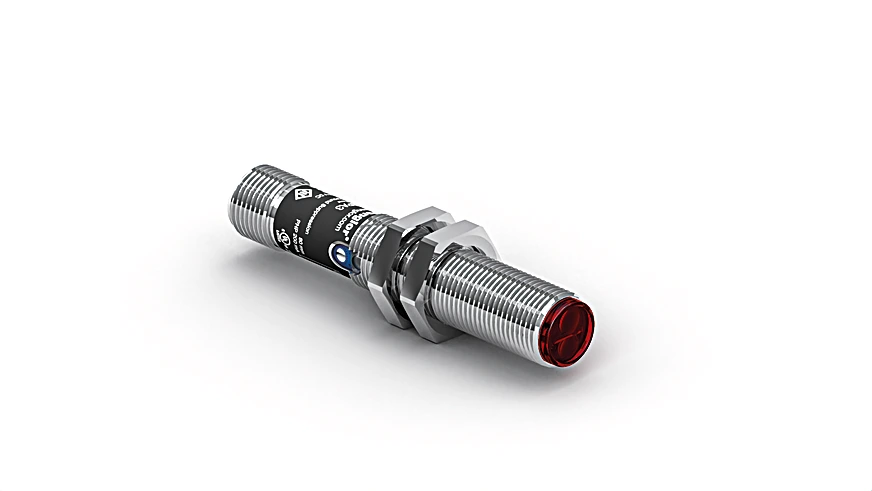

Wenglor YO11PA3 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$352.00
Part Number
  • YO11PA3
Highlights...

Features

  • Minimal height differences can be detected
  • Spot diameter: 1 mm
  • Switching frequency: 1,5 kHz
  • Range: 100 mm
  • Setting Range: 30 to 100 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 25 mA
  • Switching Frequency: 1,500 Hz
  • Response Time: 333 µs
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 0820416-000

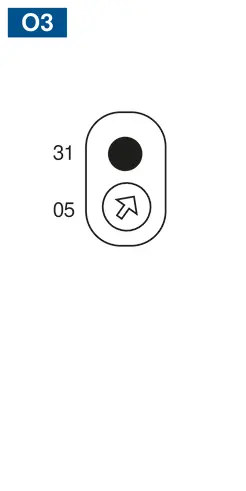

  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 16 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M12-E001 hex nut, 1 × sensor
  • PNP NC, PNP NO: yes
  • Circuit: NC, NC+NO, NO
  • Detection Range: 30 mm, 60 mm, 100 mm
  • Light Spot Diameter: 2 mm, 1 mm, 3 mm
  • Complementary Products: PNP-NPN Converter BG2V1P-N-2M
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
