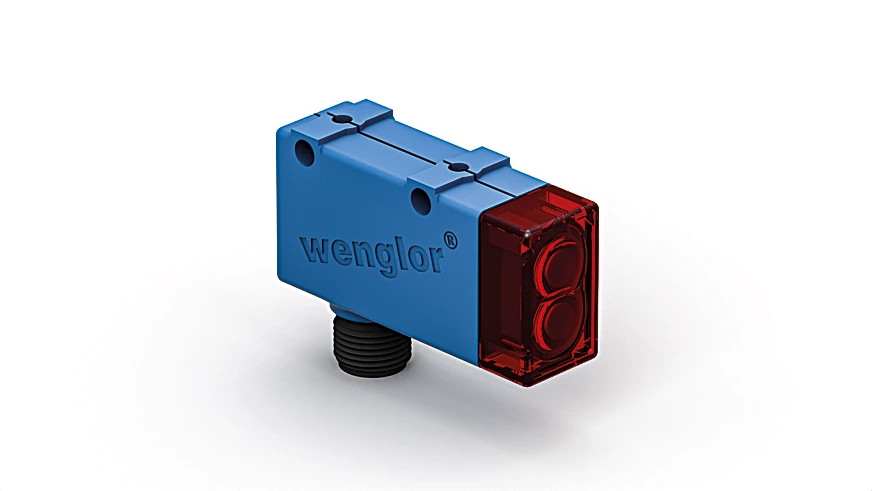

Wenglor YM24PAH2ABF Contrast Sensor

Features

• High switching frequency
• Small light spot
• Time delay can be activated
• Range: 150 mm
• Setting Range: 60 to 150 mm
• Switching Hysteresis (Lateral Approach): < 50 µm
• Light Source: Laser (red)
• Wavelength: 660 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 1
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: 1 mm
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Switching Frequency: 3 kHz
• Response Time: 166 µs
• Off-Delay: 5 ms
• Temperature Drift: < 5 %
• Temperature Range: 14°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III
• FDA Accession Number: 1720379-000

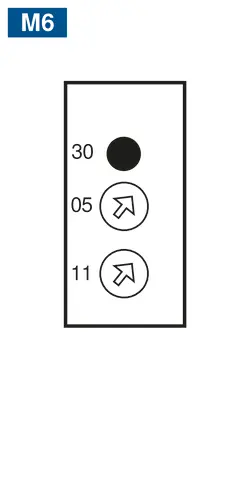

• Setting Method: Potentiometer
• Housing Material: Plastic, PBT
• Optic Cover: Plastic, PMMA
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection: M12 × 1; 4-pin
• Weight: 28 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NC, PNP NO: yes
• Complementary Products: Protective Housing ZSV-0x-01, Set Protective Housing ZSM-NN-02, PNP-NPN Converter BG2V1P-N-2M
