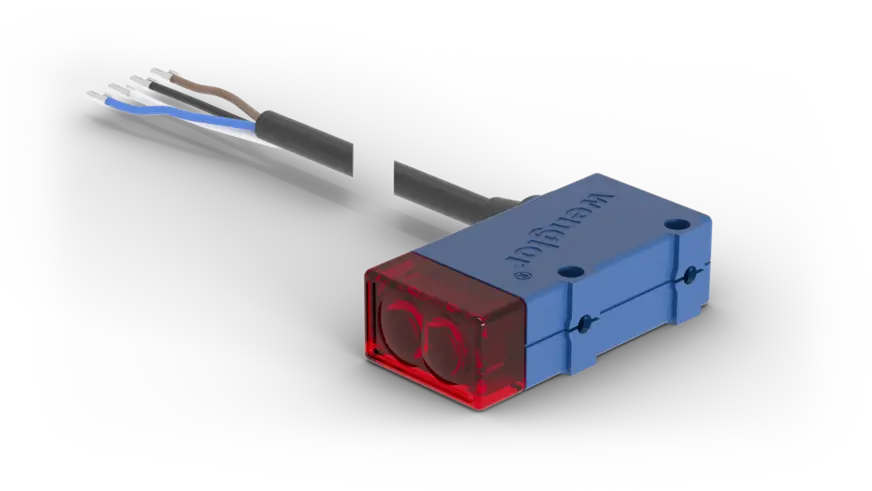

Wenglor YM22PCTS777-P24 Reflex Sensor with background suppression electronic

Features

• Large detection range
• Good black & white characteristics
• High switching frequency
• Teach-in, external teach-in, RS-232 interface
• Range: 200 mm
• Setting Range: 35 to 200 mm
• Switching Hysteresis: < 10 %
• Light Source: Laser (red)
• Wavelength: 660 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: 1 mm
• at a Distance of: 120 mm
• Principle: Triangulation
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 600 Hz
• Response Time: 833 µs
• Temperature Drift: < 5 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Lockable: yes
• Teach Mode: HT, VT
• Protection Class: III
• FDA Accession Number: 0820397-000
• Setting Method: Teach-In
• Housing Material: Plastic, PBT
• Full Encapsulation: yes
• Degree of Protection: IP67

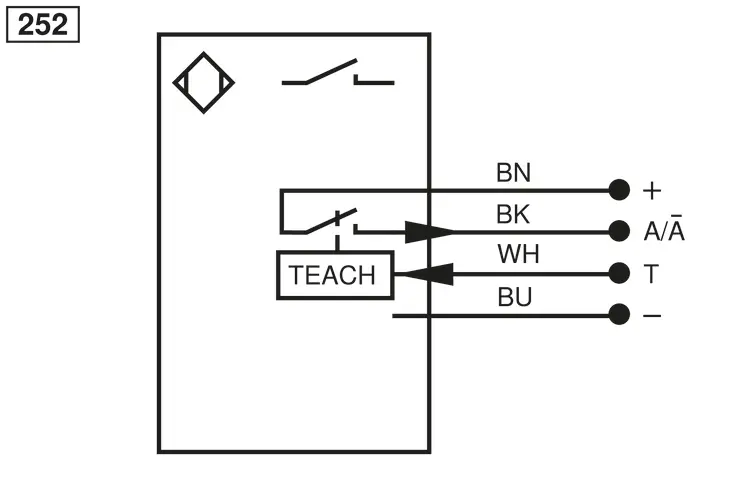

• Connection: Cable; 4-wire
• Cable length (L): 6 m
• Wire cross-section: 0.34 mm²
• Weight: 297 g
• Scope of delivery: 1 × operating instructions, 1 × BEF-SET-02 mounting set, 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
• PNP NO: yes
• RS-232 with Adapterbox: yes
• External teach-in input: yes
• Circuit: NC, NC/NO, NO
• Complementary Products: Adapterbox A232
