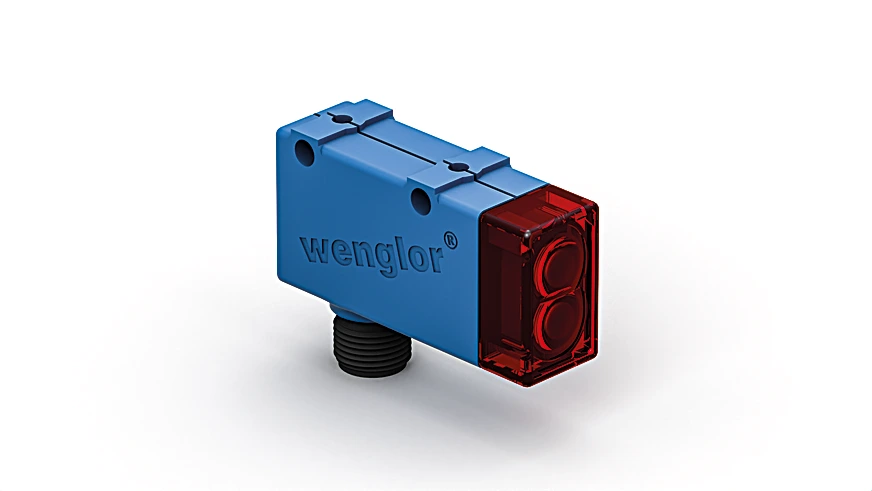

Wenglor YM22PBV2 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$770.00
Part Number
  • YM22PBV2
Highlights...

Features

  • High switching frequency
  • Large detection range
  • Good black & white characteristics
  • Range: 200 mm
  • Setting Range: 35 to 200 mm

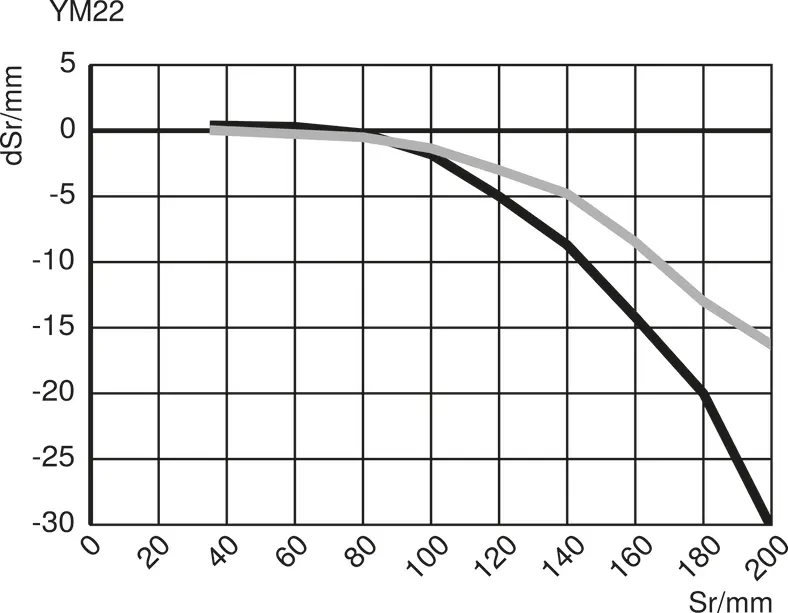

  • Switching Hysteresis: < 10 %
  • Light Source: Laser (red)
  • Wavelength: 650 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 1 mm
  • at a Distance of: 120 mm
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 1,600 Hz
  • Response Time: 313 µs
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • PNP Contamination Output/Switching Current: 50 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 0820359-001

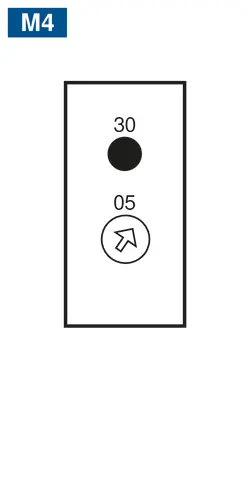

  • Setting Method: Potentiometer
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67

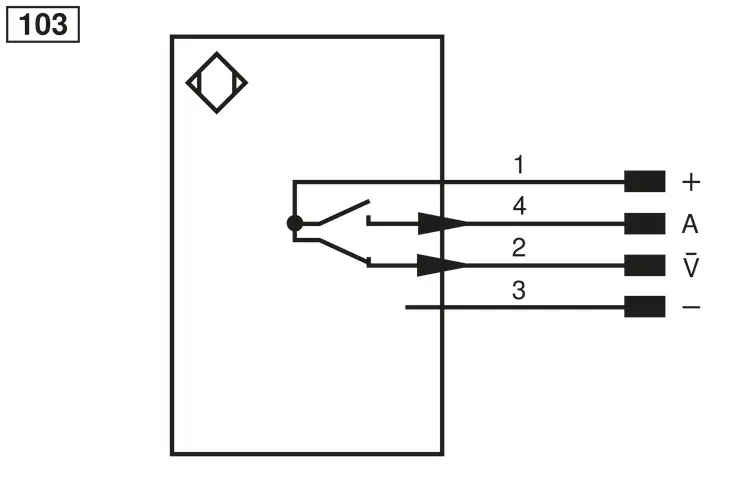

  • Connection: M12 × 1; 4-pin
  • Weight: 26 g
  • MTTFd (EN ISO 13849-1): 1,787.52 a
  • Scope of delivery: 1 × BEF-SET-02 mounting set, 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • Contamination Output: yes
  • PNP NO: yes
  • Complementary Products: Protective Housing ZSV-0x-01, Set Protective Housing ZSM-NN-02, PNP-NPN Converter BG2V1P-N-2M
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
