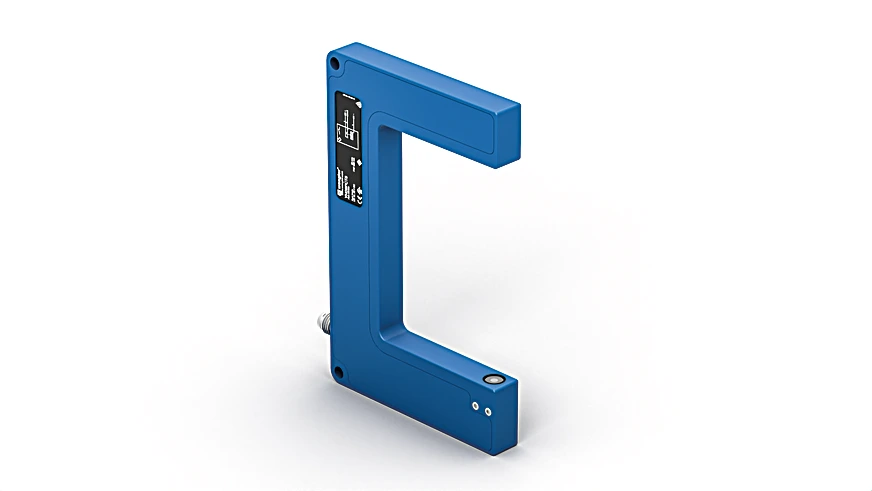

Wenglor YH08NCT8 Fork Sensor

Fork Sensor.

$414.00
Part Number
  • YH08NCT8
Highlights...

Features

  • Recognition of transparent objects
  • Fine light beam (0,6 mm) over entire width of fork
  • Repetition accuracy: 5 µm
  • Teach-in

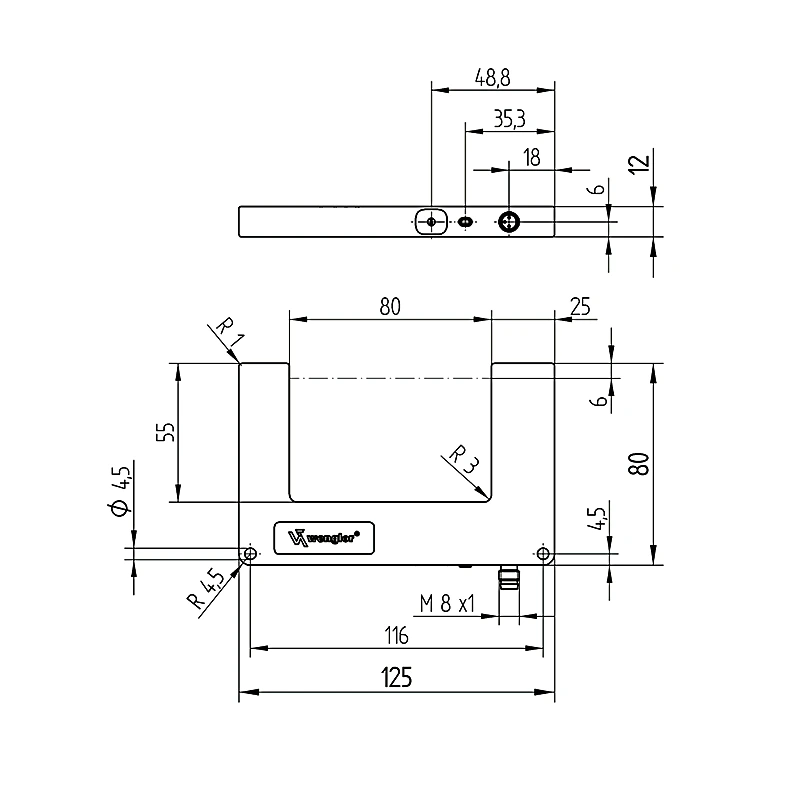

  • Fork Width: 80 mm
  • Smallest Recognizable Part: 40 µm
  • Smallest Detectable Gap: 50 µm
  • Switching Hysteresis: < 20 µm
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 0.6 mm
  • Repeat Accuracy: < 5 µm
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 50 mA
  • Switching Frequency: 10 kHz
  • Response Time: 50 µs
  • Off-Delay: 0 to 100 ms
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 1.5 V
  • NPN Switching Output/Switching Current: 200 mA
  • Internal Load Switching Output: 5,100 Ohm
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: NT, MT
  • Protection Class: III
  • FDA Accession Number: 2510938-000
  • Setting Method: Teach-In
  • Housing Material: Plastic, PA, Steel, nickel-plated
  • Optic Cover: Plastic, PC
  • Full Encapsulation: yes
  • Degree of Protection: IP67

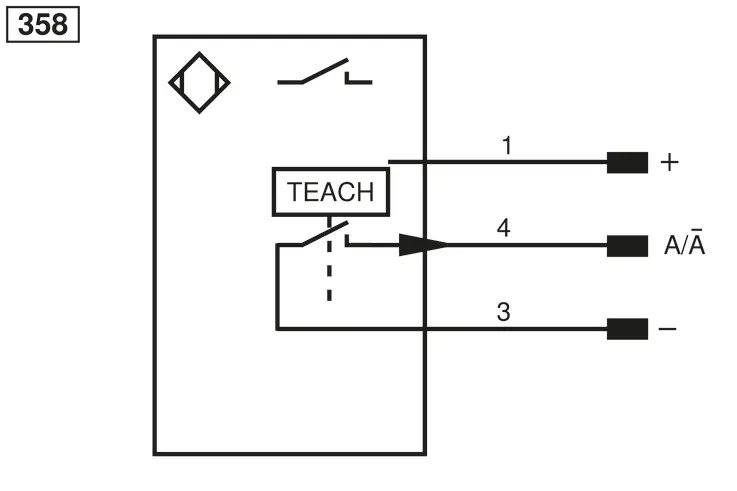

  • Connection: M8 × 1; 3-pin
  • Weight: 130 g
  • MTTFd (EN ISO 13849-1): 1,436.4 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • NPN NO: yes
  • Circuit: NC, NC/NO, NO
The transmitter and the receiver are integrated into a single housing as a light barrier. If the active light beam between the transmitter and the receiver is interrupted, the output is switched accordingly. Thanks to the use of visible laser light, the sensor is very easy to align to the object. The use of a fine light beam ensures a small diameter spot over the entire width of the fork. This allows for the recognition of extremly small parts, holes, slots and notches.
