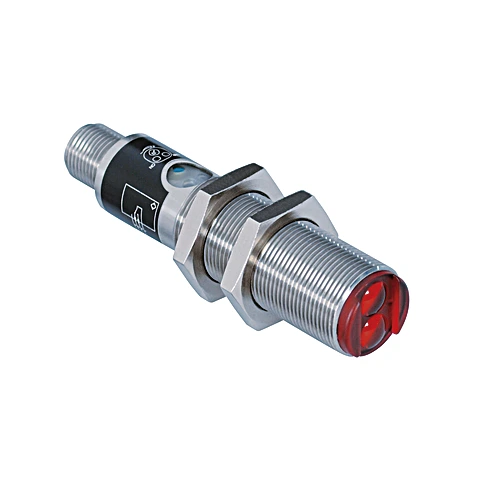

Wenglor YD24PA3S836 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$457.00
Part Number
  • YD24PA3S836
Highlights...

Features

  • Working range adjusted to 50 mm on Kodak white paper
  • Spot diameter: 0,5 mm
  • Switching frequency: 1 kHz
  • Stainless steel housing
  • Range: 50 mm
  • Switching Hysteresis: 5 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 25 mA
  • Switching Frequency: 1 kHz
  • Response Time: 500 µs
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

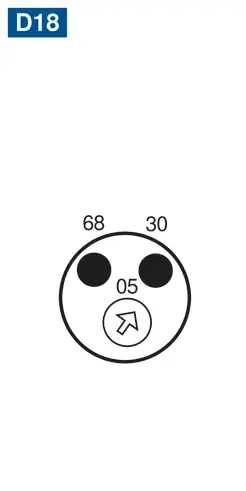

  • Setting Method: Potentiometer

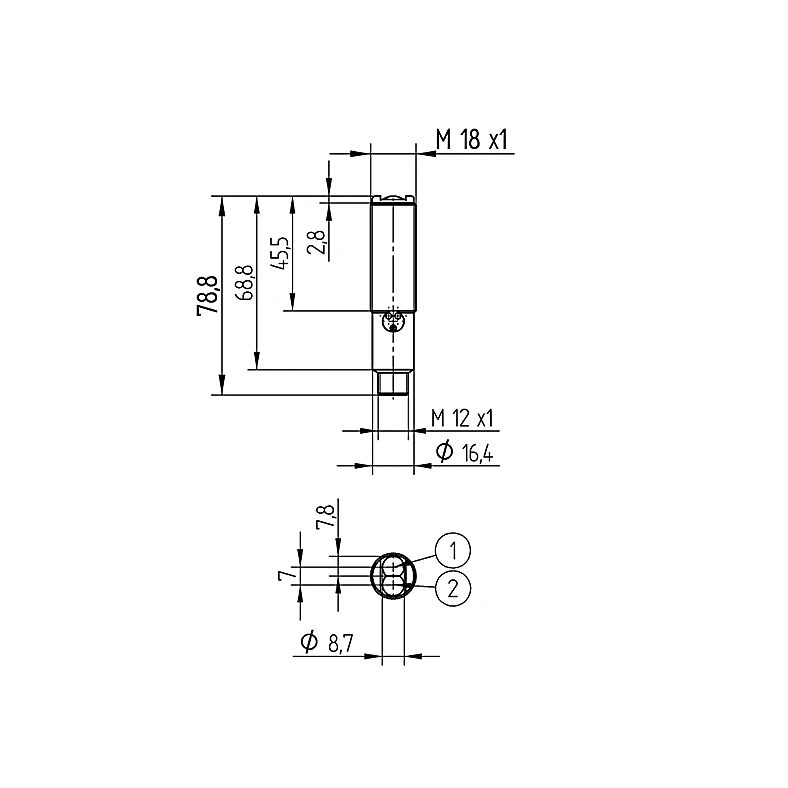

  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 67 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • PNP NC, PNP NO: yes

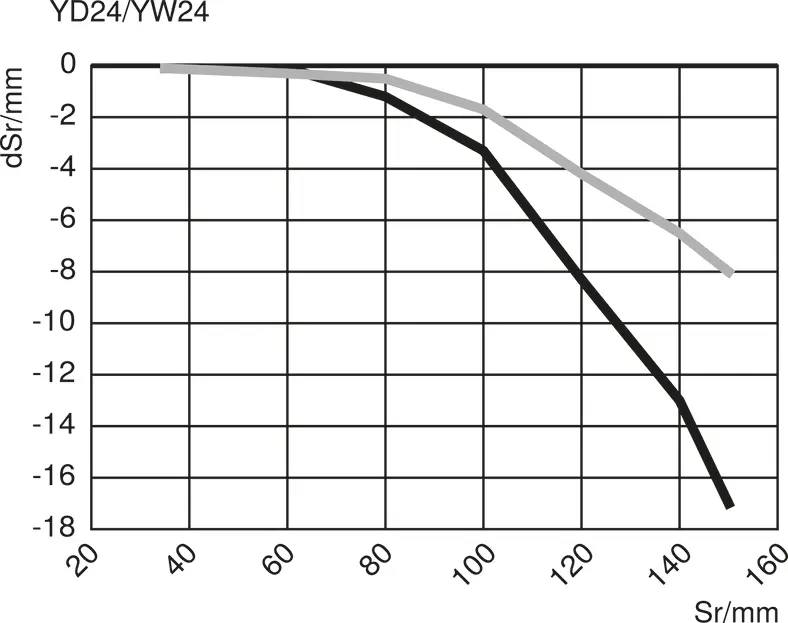

  • Detection Range: 50 mm, 100 mm, 150 mm
  • Light Spot Diameter: 1,2 mm, < 0,5 mm, 1,5 mm
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-01, PNP-NPN Converter BG2V1P-N-2M
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
