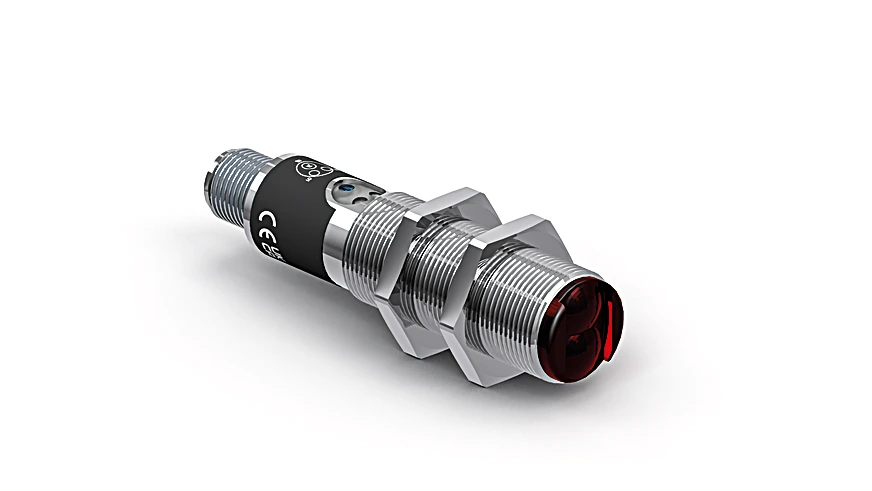

Wenglor YD24NA3 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$425.00
Part Number
  • YD24NA3
Highlights...

Features

  • Stainless steel housing
  • Spot diameter: 0,5 mm
  • Switching frequency: 1,3 kHz
  • Range: 150 mm
  • Setting Range: 35 to 150 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 25 mA
  • Switching Frequency: 1,300 Hz
  • Response Time: 385 µs
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • NPN Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 0820356-001

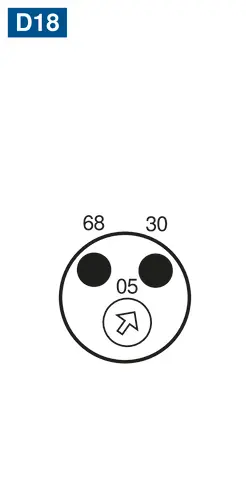

  • Setting Method: Potentiometer
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67

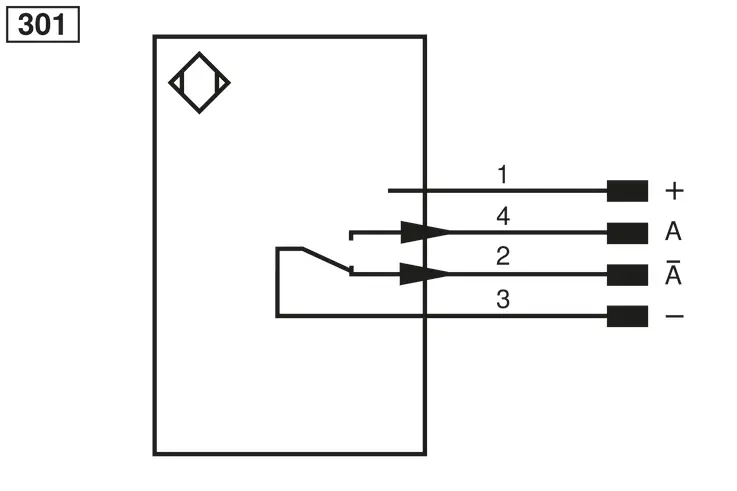

  • Connection: M12 × 1; 4-pin
  • Weight: 37 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • NPN NC, NPN NO: yes
  • Detection Range: 50 mm, 100 mm, 150 mm
  • Light Spot Diameter: 1,2 mm, < 0,5 mm, 1,5 mm
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-01
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
