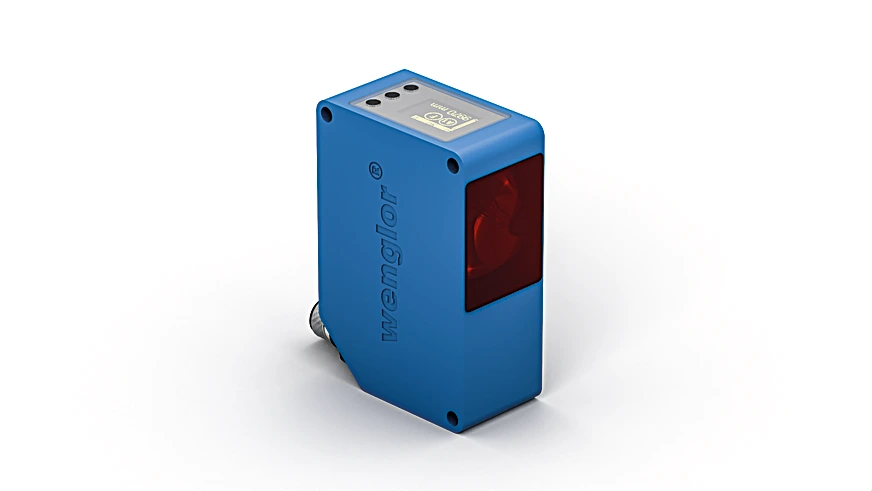

Wenglor Y1TA100QXVT80S733 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$1,244.00
Part Number
  • Y1TA100QXVT80S733
Highlights...

Features

  • 2 mutually independent switching outputs
  • Graphical display for easy operation
  • Scratch-resistant optic cover
  • Emitted light disengageable
  • Working Range: 0.1 to 10.1 m
  • Measuring Range: 10 m
  • Resolution: 1 to 10 mm
  • Linearity: 0.2 %
  • Linearity Deviation: 20 mm
  • Switching Hysteresis: 3 to 20 mm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Beam Divergence: < 2 mrad
  • Reflector required: no
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 100 mA
  • Measuring Rate: 1 to 100 /s
  • On-/Off-Delay: 0 to 10,000 ms
  • Temperature Drift: 0.25 mm/K
  • Temperature Range: 14°F to 140°F
  • Number of Switching Outputs: 3
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Error Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: RS-232
  • Protection Class: III
  • FDA Accession Number: 0710891-002
  • Setting Method: Menu (OLED)
  • Housing Material: Plastic, PC
  • Degree of Protection: IP68

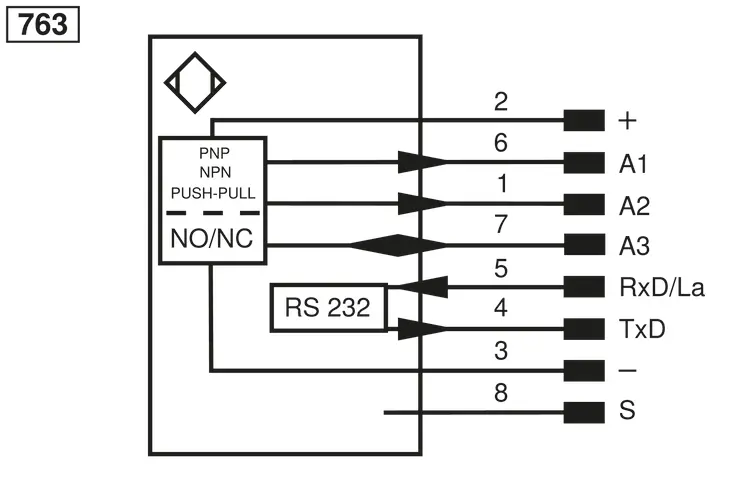

  • Connection: M12 × 1; 8-pin
  • Weight: 124 g
  • MTTFd (EN ISO 13849-1): 345.57 a
  • Scope of delivery: 1 × BEF-SET-34 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • PNP NO: yes
  • RS-232 Interface: yes
  • External teach-in input: yes
  • Output: Error Output, Push-pull, NPN, PNP
  • Working Distance: 0 m, 10 m
  • Light Spot Diameter: 5 mm, < 20 mm
  • Complementary Products: Interface Cable S232W3, Set Protective Housing ZST-NN-02, Fieldbus Gateway ZAGxxxN01, EPGG001
These sensors measure the distance between the sensor and the object. They function in accordance with the principle of transit time measurement. For this reason, the object's color, shape and surface characteristics have practically no influence on measurement results. They are aligned directly to the object.Settings are selected by means of a menu, and can be protected with a password.
