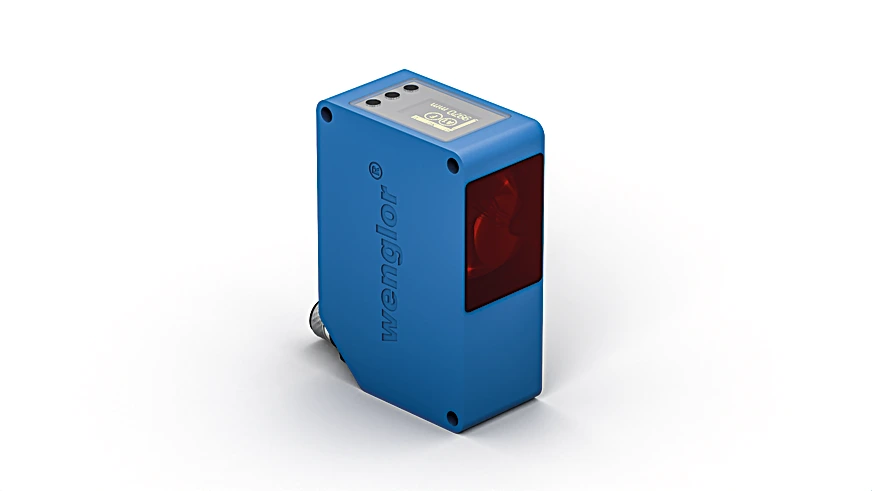

Wenglor Y1TA100MHV80 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$1,405.00
Part Number
  • Y1TA100MHV80
Highlights...

Features

  • Analog output (0 to 10 V/4 to 20 mA)
  • Graphical display for easy operation
  • Emitted light disengageable
  • Temperature drift eliminable
  • Working Range: 0.1 to 10.1 m
  • Measuring Range: 10 m
  • Resolution: 1 to 12 mm
  • Linearity (Working Range 0.1…5 m): 0.05 %
  • Linearity (Working Range 5…10.1 m): 0.2 %
  • Switching Hysteresis: 3 to 20 mm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Beam Divergence: < 2 mrad
  • Light Spot Diameter: see table 1
  • Reflector required: no
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 100 mA
  • Switching Frequency: 50 Hz
  • Measuring Rate: 1 to 100 /s
  • On-/Off-Delay: 0 to 10,000 ms
  • Temperature Drift (14°F < Tu < 122°F): < 0.2 mm/K
  • Temperature Drift (Tu < 14°F, Tu > 122°F): < 0.4 mm/K
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Analog Output: 0 to 10 V
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 0710891-002
  • Setting Method: Menu (OLED)
  • Housing Material: Plastic, ABS, Plastic, PC
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP68

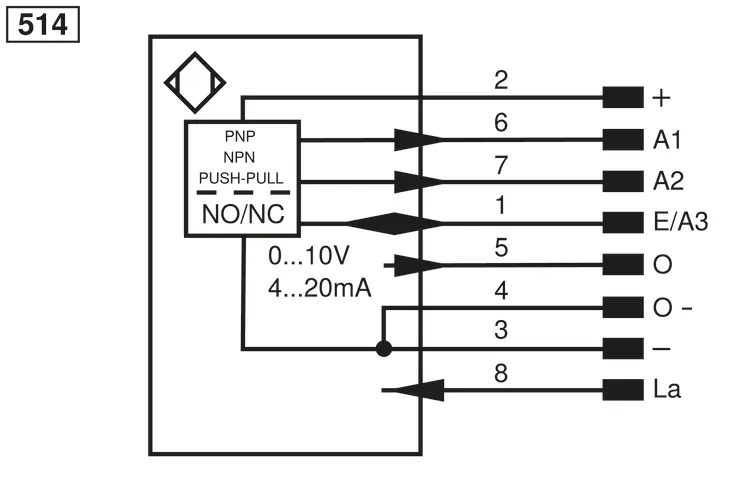

  • Connection: M12 × 1; 8-pin
  • Weight: 86 g
  • MTTFd (EN ISO 13849-1): 345.73 a
  • Scope of delivery: 1 × BEF-SET-34 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • PNP NO: yes
  • Analog Output: yes
  • External teach-in input: yes
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Output: Analog Output, Error Output, Push-pull, NPN, PNP
  • Working Distance: 0 m, 10 m
  • Light Spot Diameter: 5 mm, < 20 mm
  • Complementary Products: IO-Link converter, Analog Evaluation Unit AW02, Set Protective Housing ZST-NN-02
These sensors have scratch-resistant optics and the emitted light can be switched off. They use the transit time measurement principle to measure the distance between the sensor and the object. For this reason, the object's color, shape and surface characteristics have practically no influence on measurement results. Even dark objects can be reliably recognized.
