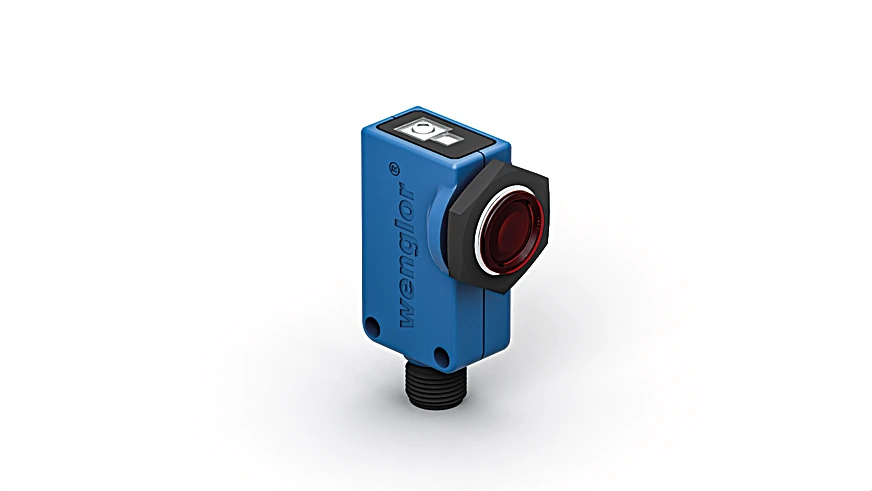

Wenglor XR96PCT2 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$425.00
Part Number
  • XR96PCT2
Highlights...

Features

  • Simple installation
  • Teach-in, external teach-in
  • Range: 12,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Switching Hysteresis: < 5 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Beam Divergence: 5 mrad
  • Focus Distance: 500 mm
  • Optics: Single-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 2 kHz
  • Response Time: 250 µs
  • On-/Off-Delay (RS-232): 0 to 5 s
  • Temperature Drift: < 5 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: NT, MT
  • Protection Class: III
  • FDA Accession Number: 0820374-000
  • Setting Method: Teach-In
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 28 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • PNP NC: yes
  • External teach-in input: yes
  • RS-232 with Adapterbox: yes
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay
  • RQ100BA: 0 to 12 m
  • RE18040BA: 0 to 8 m
  • RQ84BA: 0 to 10 m
  • RR84BA: 0 to 15 m
  • RE9538BA: 0 to 6 m
  • RE6151BM: 0 to 10 m
  • RE6151BA: 0 to 4 m
  • RR50_A: 0 to 9 m
  • RE6040BA: 0 to 10 m
  • RE8222BA: 0 to 6 m
  • RR34_M: 0 to 6 m
  • RE3220BM: 0 to 5 m
  • RE6210BM: 0 to 4.5 m
  • RR25_M: 0 to 5 m
  • RR25KP: 0 to 3 m
  • RR21_M: 0 to 3 m
  • ZRAE02B01: 0 to 6 m
  • ZRME01B01: 0 to 2 m
  • ZRME03B01: 0 to 6 m
  • ZRMR02K01: 0 to 3 m
  • ZRMS02_01: 0 to 2.5 m
  • RF505: 0 to 4 m
  • RF255: 0 to 3.5 m
  • RF508: 0 to 3 m
  • RF258: 0 to 3 m
  • ZRDF__K01: 0 to 8 m
  • RE9444BH: 1 to 2 m
  • Complementary Products: Reflector, Reflector Foil, Adapterbox A232, Dust Extraction Tube STAUBTUBUS-01, PNP-NPN Converter BG2V1P-N-2M, Software
A reflector must be used in combination with these sensors. wenglor has the right retro-reflex sensor for every application. Because of the M18 threaded connector, the sensor is easy to install and protected mechanically. A time delay can only be activated via the RS-232 interface.
