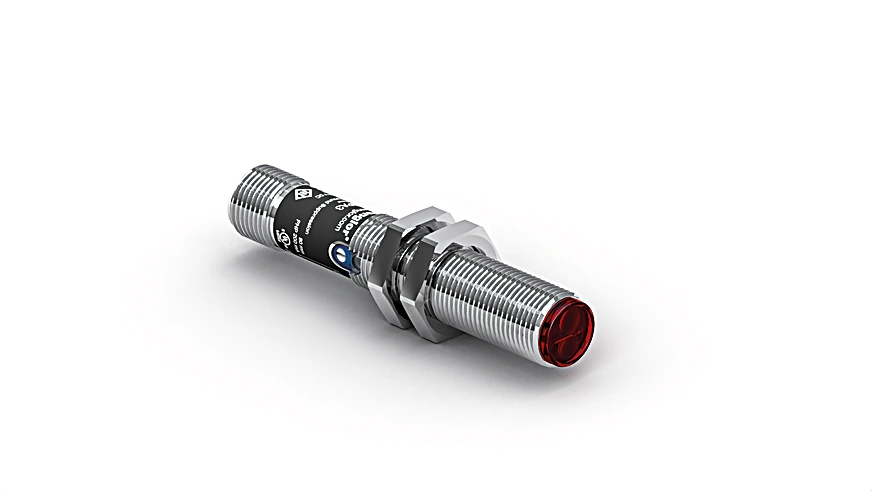

Wenglor XO89PA3 Retro-Reflex Sensor Universal

Features

• Smallest recognizable part: 0,1 mm
• Spot diameter: 1 mm
• Switching frequency: 3 kHz
• Range: 6,000 mm
• Reference Reflector/Reflector Foil: RQ100BA
• Smallest Recognizable Part: 100 µm
• Switching Hysteresis: < 15 %
• Light Source: Laser (red)
• Wavelength: 655 nm
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Beam Divergence: < 20 mrad
• Light Spot Diameter: 1 mm
• Optics: Two-Lens Optic
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Switching Frequency: 3 kHz
• Response Time: 167 µs
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• FDA Accession Number: 0820585-000

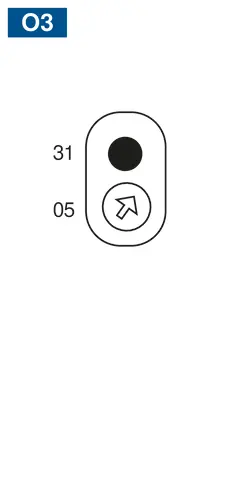

• Setting Method: Potentiometer
• Housing Material: Brass, nickel-plated
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection: M12 × 1; 4-pin
• Weight: 16 g
• Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × MUTTER-M12-E001 hex nut, 1 × sensor
• PNP NC, PNP NO: yes
• Circuit: NC, NC+NO, NO
• RQ100BA: 0.15 to 6 m
• RE18040BA: 0.1 to 2.9 m
• RQ84BA: 0.25 to 5.4 m
• RR84BA: 0.05 to 4.9 m
• RE9538BA: 0.05 to 2 m
• RE6151BM: 0.05 to 5.2 m
• RE6151BA: 0.05 to 3 m
• RR50_A: 0.03 to 4.3 m
• RE6040BA: 0.05 to 5.2 m
• RE8222BA: 0.03 to 2.9 m
• RR34_M: 0.05 to 3 m
• RE3220BM: 0.05 to 2.5 m
• RE6210BM: 0.05 to 2 m
• RR25_M: 0.05 to 2.6 m
• RR25KP: 0.05 to 1.5 m
• RR21_M: 0.05 to 2.5 m
• ZRAE02B01: 0.4 to 2.5 m
• ZRME01B01: 0.4 to 1 m
• ZRME03B01: 0.4 to 2.5 m
• ZRMR02K01: 0.4 to 1.1 m
• ZRMS02_01: 0.4 to 1.4 m
• RF505: 0.05 to 1.4 m
• RF255: 0.05 to 1.3 m
• RF508: 0.05 to 1.3 m
• RF258: 0.05 to 1.3 m
• ZRDF__K01: 0.2 to 3.8 m
• Complementary Products: Reflector, Reflector Foil, PNP-NPN Converter BG2V1P-N-2M
