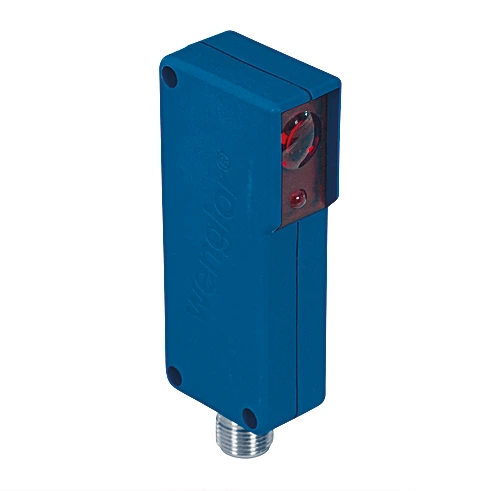

Wenglor XN96PB3 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$753.00
Part Number
  • XN96PB3
Highlights...

Features

  • Stainless steel plug (V2A)
  • Single-lens optic
  • Smallest recognizable part: 0,25 mm
  • Min. clearance to reflector: 0 mm
  • Range: 9,500 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Min. Distance to Reflector: 0 mm
  • Smallest Recognizable Part: > 250 µm
  • Switching Hysteresis: < 15 %
  • Light Source: Laser (red)
  • Wavelength: 650 nm
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 0.6 °
  • Optics: Single-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 2,500 Hz
  • Response Time: 200 µs
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 0820394-001

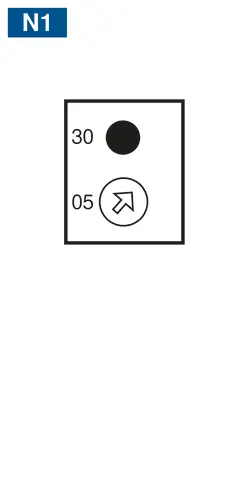

  • Setting Method: Potentiometer
  • Housing Material: Plastic
  • Full Encapsulation: yes
  • Degree of Protection: IP67

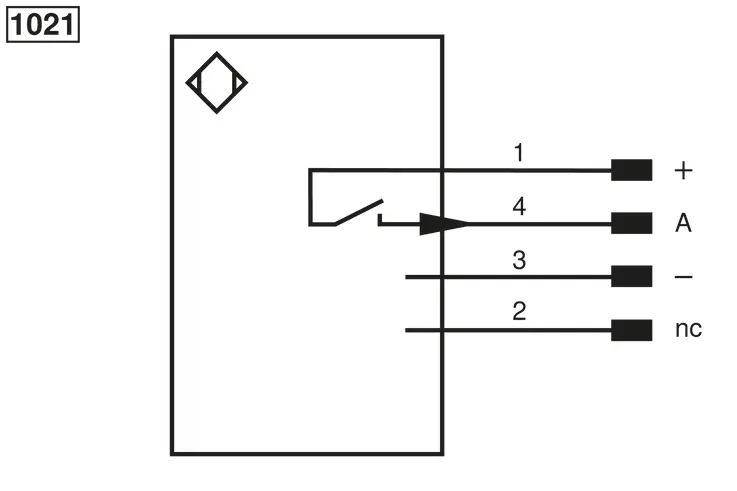

  • Connection: M12 × 1; 4-pin
  • Weight: 51 g
  • Scope of delivery: 1 × BEF-SET-02 mounting set, 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • PNP NO: yes
  • Working Distance: 0,2 m, 3 m, 6 m
  • Light Spot Diameter: 3 mm, 45 mm, 90 mm
  • RQ100BA: 0 to 9.5 m
  • RE18040BA: 0 to 6 m
  • RQ84BA: 0 to 7 m
  • RR84BA: 0 to 9.5 m
  • RE9538BA: 0 to 2.5 m
  • RE6151BM: 0 to 8.5 m
  • RE6151BA: 0 to 3 m
  • RR50_A: 0 to 6.5 m
  • RE6040BA: 0 to 8.5 m
  • RE8222BA: 0 to 3.5 m
  • RR34_M: 0 to 3.5 m
  • RE3220BM: 0 to 3 m
  • RE6210BM: 0 to 2.5 m
  • RR25_M: 0 to 3.5 m
  • RR25KP: 0 to 1.5 m
  • RR21_M: 0 to 1.4 m
  • ZRAE02B01: 0 to 4 m
  • ZRME01B01: 0 to 1.3 m
  • ZRME03B01: 0 to 3.5 m
  • ZRMR02K01: 0 to 1.5 m
  • ZRMS02_01: 0 to 1.5 m
  • RF505: 0 to 2.3 m
  • RF255: 0 to 1.8 m
  • RF508: 0 to 2 m
  • RF258: 0 to 1.8 m
  • ZRDF__K01: 0 to 6 m
  • Complementary Products: Reflector, Reflector Foil, Dust Extraction Tube STAUBTUBUS-03, PNP-NPN Converter BG2V1P-N-2M
A reflector must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.
