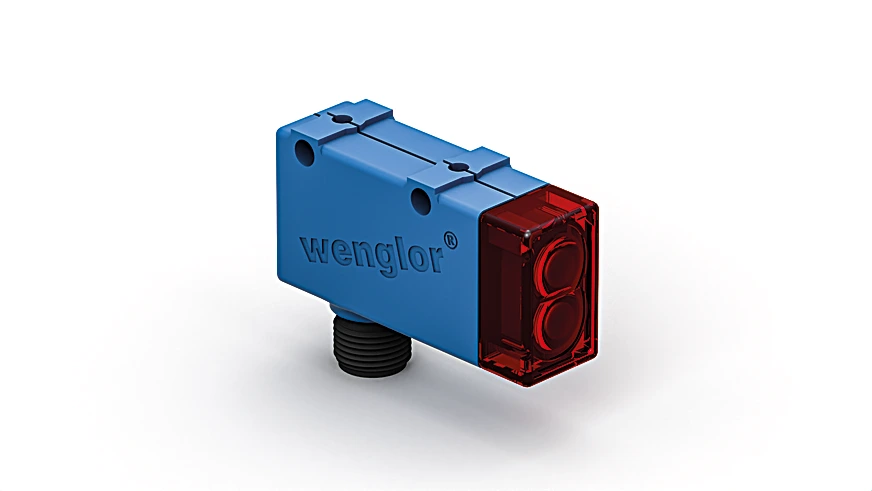

Wenglor XM98PAH2S914 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$449.00
Part Number
  • XM98PAH2S914
Highlights...

Features

  • Smallest recognizable part: 2,5 mm
  • Range: 15 m
  • Switching frequency: 3 kHz
  • Time delay
  • Range: 15,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Min. Distance to Reflector: 80 mm
  • Smallest Recognizable Part: > 2,500 µm
  • Switching Hysteresis: < 15 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 0.6 °
  • Optics: Two-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 3 kHz
  • Response Time: 166 µs
  • Off-Delay: 5 ms
  • Temperature Drift: < 10 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Protection Class: III

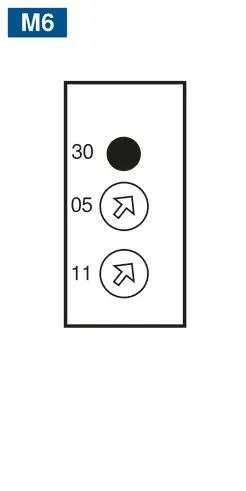

  • Setting Method: Potentiometer
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67

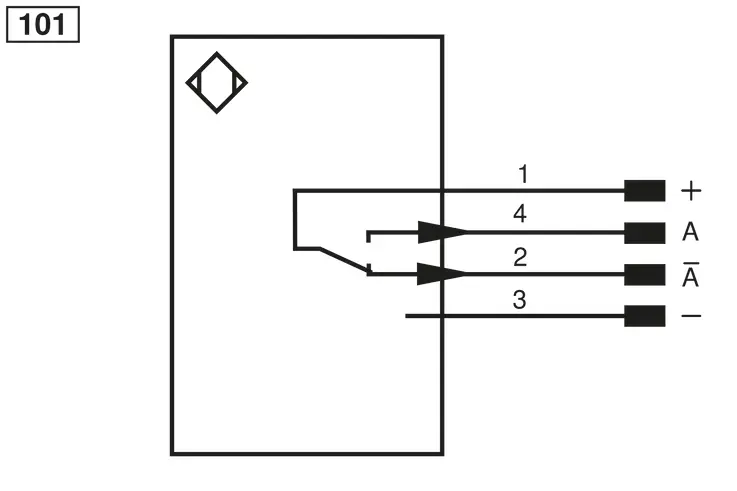

  • Connection: M12 × 1; 4-pin
  • Weight: 62 g
  • Scope of delivery: 1 × BEF-SET-02 mounting set, 1 × BEF-SET-04 mounting set, 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • PNP NC, PNP NO: yes
  • Circuit: NC, NC+NO, NO
  • Working Distance: 0,2 m, 5 m, 10 m
  • Light Spot Diameter: 5 mm, 35 mm, 70 mm
  • RQ100BA: 0.08 to 15 m
  • RE18040BA: 0.1 to 12 m
  • RQ84BA: 0.08 to 10 m
  • RR84BA: 0.08 to 12 m
  • RE9538BA: 0.15 to 4.5 m
  • RE6151BM: 0.1 to 10 m
  • RE6151BA: 0.08 to 6 m
  • RR50_A: 0.08 to 10 m
  • RE6040BA: 0.08 to 10 m
  • RE8222BA: 0.08 to 8 m
  • RR34_M: 0.1 to 6 m
  • RE3220BM: 0.1 to 6 m
  • RE6210BM: 0.15 to 5.5 m
  • RR25_M: 0.15 to 7 m
  • RR25KP: 0.1 to 4 m
  • RR21_M: 0.1 to 3.5 m
  • ZRAE02B01: 0.08 to 6 m
  • ZRME01B01: 0.1 to 2 m
  • ZRME03B01: 0.15 to 8 m
  • ZRMR02K01: 0.08 to 2.5 m
  • ZRMS02_01: 0.1 to 3 m
  • RF505: 0.2 to 3 m
  • RF255: 0.2 to 2.5 m
  • RF508: 0.2 to 3 m
  • RF258: 0.2 to 2.5 m
  • ZRDF__K01: 0.1 to 11 m
  • Complementary Products: Reflector, Reflector Foil, Protective Housing ZSV-0x-01, Set Protective Housing ZSM-NN-02, PNP-NPN Converter BG2V1P-N-2M
A reflector must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.
