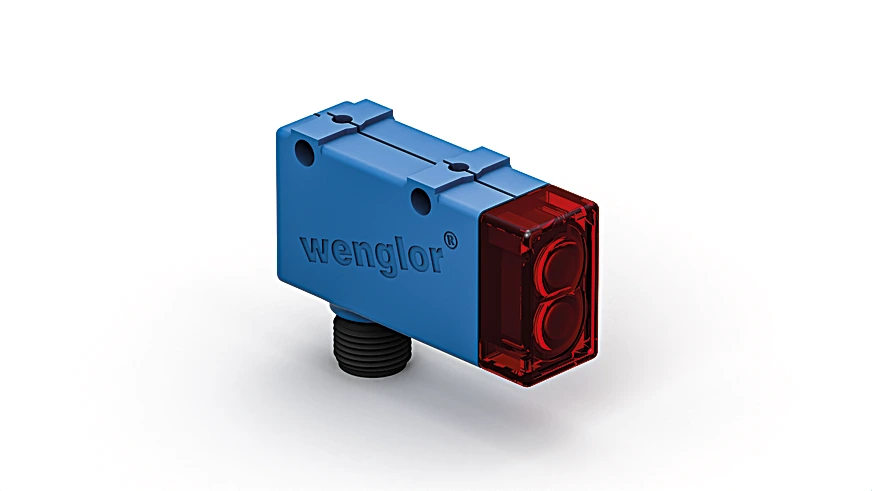

Wenglor XM98PAH2 Retro-Reflex Sensor Universal

Features

• Smallest recognizable part: 2,5 mm
• Range: 15 m
• Switching frequency: 3 kHz
• Time delay
• Range: 15,000 mm
• Reference Reflector/Reflector Foil: RQ100BA
• Min. Distance to Reflector: 80 mm
• Smallest Recognizable Part: > 2,500 µm
• Switching Hysteresis: < 15 %
• Light Source: Laser (red)
• Wavelength: 655 nm
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 0.6 °
• Optics: Two-Lens Optic
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Switching Frequency: 3 kHz
• Response Time: 166 µs
• Off-Delay: 5 ms
• Temperature Drift: < 10 %
• Temperature Range: 14°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III

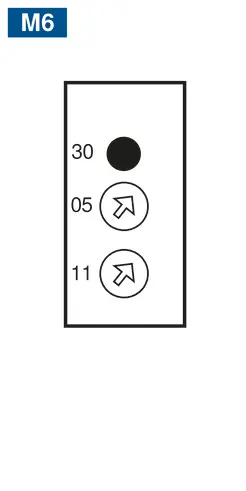

• Setting Method: Potentiometer
• Housing Material: Plastic, PBT
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection: M12 × 1; 4-pin
• Weight: 27 g
• Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
• PNP NC, PNP NO: yes
• Circuit: NC, NC+NO, NO
• Working Distance: 0,2 m, 5 m, 10 m
• Light Spot Diameter: 5 mm, 35 mm, 70 mm
• RQ100BA: 0.08 to 15 m
• RE18040BA: 0.1 to 12 m
• RQ84BA: 0.08 to 10 m
• RR84BA: 0.08 to 12 m
• RE9538BA: 0.15 to 4.5 m
• RE6151BM: 0.1 to 10 m
• RE6151BA: 0.08 to 6 m
• RR50_A: 0.08 to 10 m
• RE6040BA: 0.08 to 10 m
• RE8222BA: 0.08 to 8 m
• RR34_M: 0.1 to 6 m
• RE3220BM: 0.1 to 6 m
• RE6210BM: 0.15 to 5.5 m
• RR25_M: 0.15 to 7 m
• RR25KP: 0.1 to 4 m
• RR21_M: 0.1 to 3.5 m
• ZRAE02B01: 0.08 to 6 m
• ZRME01B01: 0.1 to 2 m
• ZRME03B01: 0.15 to 8 m
• ZRMR02K01: 0.08 to 2.5 m
• ZRMS02_01: 0.1 to 3 m
• RF505: 0.2 to 3 m
• RF255: 0.2 to 2.5 m
• RF508: 0.2 to 3 m
• RF258: 0.2 to 2.5 m
• ZRAF08K01: 0.2 to 1.7 m
• ZRDF__K01: 0.1 to 11 m
• Complementary Products: Reflector, Reflector Foil, Protective Housing ZSV-0x-01, Set Protective Housing ZSM-NN-02, PNP-NPN Converter BG2V1P-N-2M
