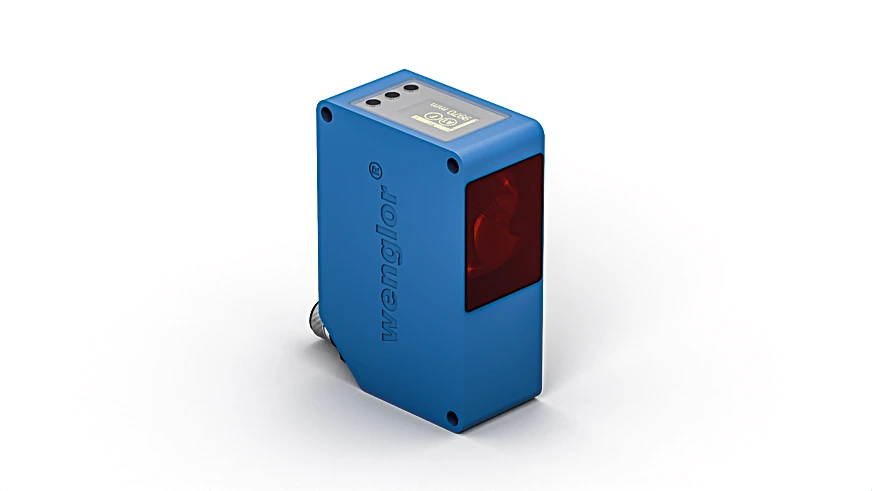

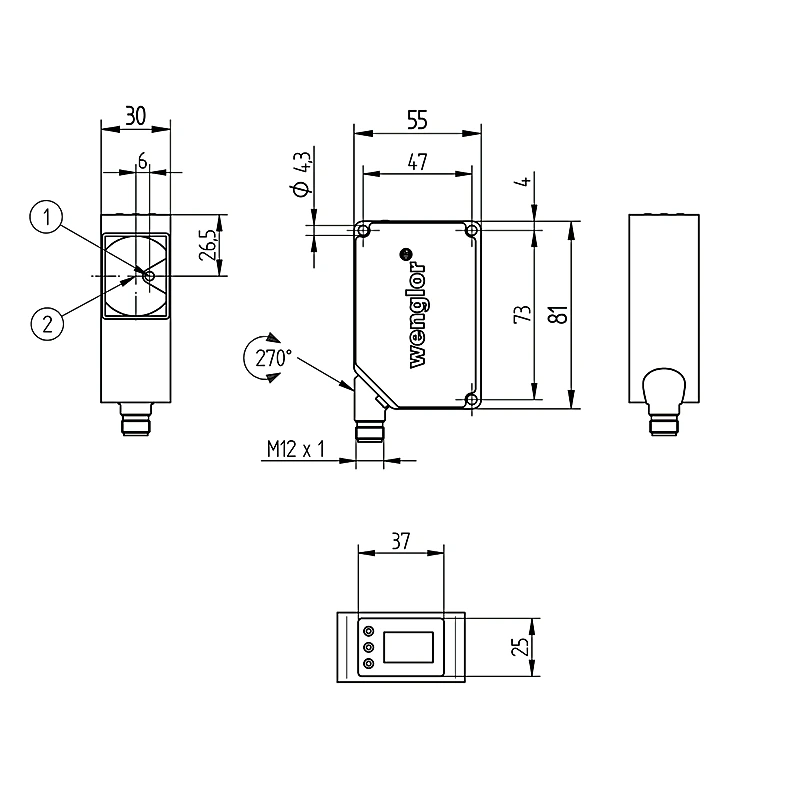

Wenglor X1TA101MHV80 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$1,357.00
Part Number
  • X1TA101MHV80
Highlights...

Features

  • Analog output (0 to 10 V/4 to 20 mA)
  • Graphical display for easy operation
  • Emitted light disengageable
  • Temperature drift eliminable
  • Working Range: 200 to 100,200 mm
  • Measuring Range: 100,000 mm
  • Reference Reflector/Reflector Foil: 4 × RQ100BA
  • Resolution: 4 to 20 mm
  • Linearity: 0.05 %
  • Linearity Deviation: 50 mm
  • Switching Hysteresis: 13 to 50 mm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Beam Divergence: < 2 mrad
  • Light Spot Diameter: see table 1
  • Reflector required: yes
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 100 mA
  • Switching Frequency: 50 Hz
  • Measuring Rate: 1 to 100 /s
  • On-/Off-Delay: 0 to 10,000 ms
  • Temperature Drift: 0.5 mm/K
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Analog Output: 0 to 10 V
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 0920382-000

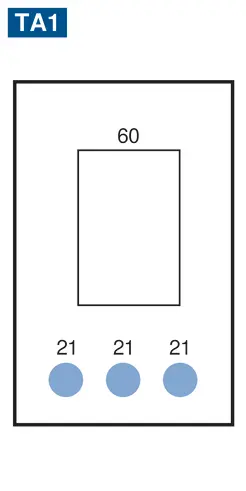

  • Setting Method: Menu (OLED)
  • Housing Material: Plastic, ABS, Plastic, PC
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP68

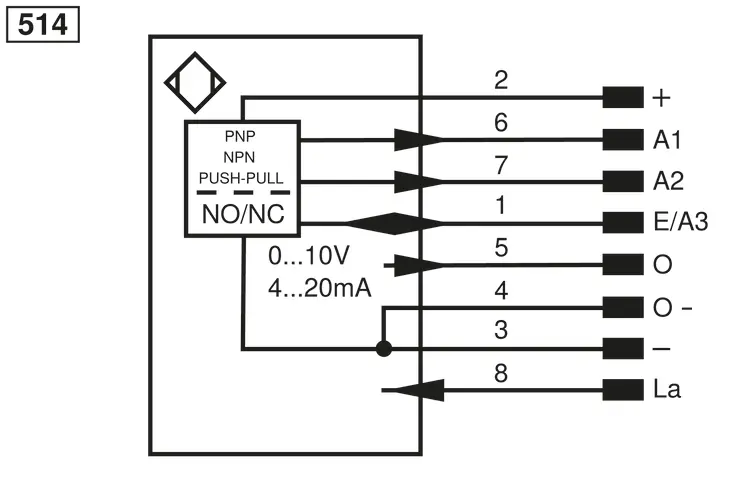

  • Connection: M12 × 1; 8-pin
  • Weight: 82 g
  • MTTFd (EN ISO 13849-1): 345.65 a
  • Scope of delivery: 1 × BEF-SET-34 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • PNP NO: yes
  • Analog Output: yes
  • External teach-in input: yes
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Output: Analog Output, Error Output, Push-pull, NPN, PNP
  • Working Distance: 0 m, 40 m, 100 m
  • Light Spot Diameter: 5 mm, 80 mm, < 200 mm
  • RQ100BA: 5 to 100 m
  • RF505: 0.2 to 40 m
  • RF508: 0.2 to 40 m
  • RF258: 0.2 to 40 m
  • ZRAF07K01: 0.2 to 40 m
  • ZRAF08K01: 0.2 to 40 m
  • ZRDF03K01: 0.2 to 40 m
  • ZRDF10K01: 0.2 to 100 m
  • Complementary Products: IO-Link converter, Analog Evaluation Unit AW02, Reflector, Reflector Foil, Set Protective Housing ZST-NN-02
These sensors have scratch-resistant optics and the emitted light can be switched off. They use the transit time measurement principle to measure the distance between the sensor and the object. Using a suitable reflector at the object, a highly accurate position measurement at large distances is also possible. The configurations are selected using a menu and can be protected by a password.
