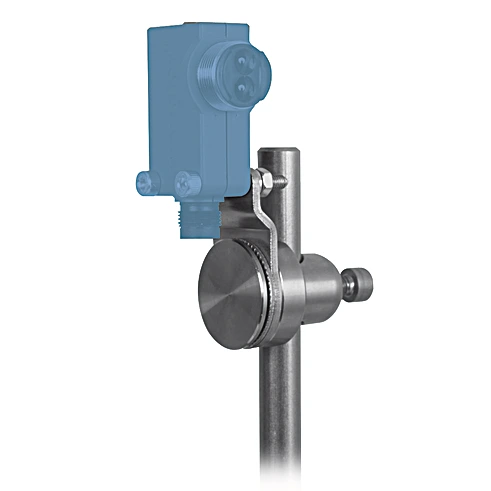

Wenglor WRS12AL Mounting for 56,5 × 26 × 16 mm (M)
Mounting for 56,5 × 26 × 16 mm (M).
$21.90
Part Number
- WRS12AL
Highlights...
- WRS12AL
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Aluminum
- Simple installation
- Flexible alignment options
- For 56,5 × 26 × 16 mm
- Mounting type, device-side: Screwable to mounting plate
- Mounting type, system-side: Mounting bar
- Material Mounting Head: Aluminum, anodised
- Material Mounting Plate: Stainless steel, V2A (1.4301/304)
- for Round Profile Diameter: 8 to 13 mm
- Weight: 58 g
- Scope of delivery: 1 × mounting head, 1 × mounting plate, 1 × M6 screw × 20 mm
- Packaging unit: 1 Piece
- Use: for square housing
Description
The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
Documents
Spec Sheets
Other

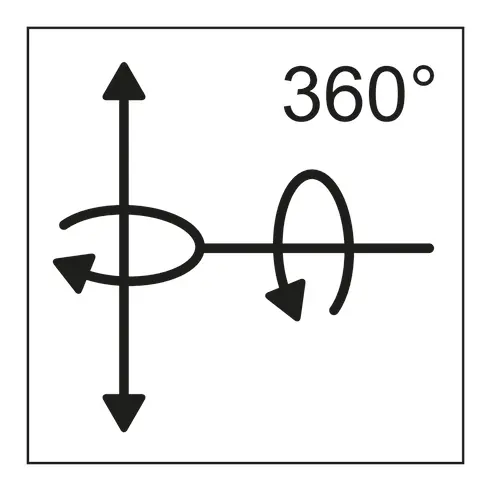

- Wenglor WRS12AL Mounting for 56,5 × 26 × 16 mm (M) Alignment possibilities (55 KB)

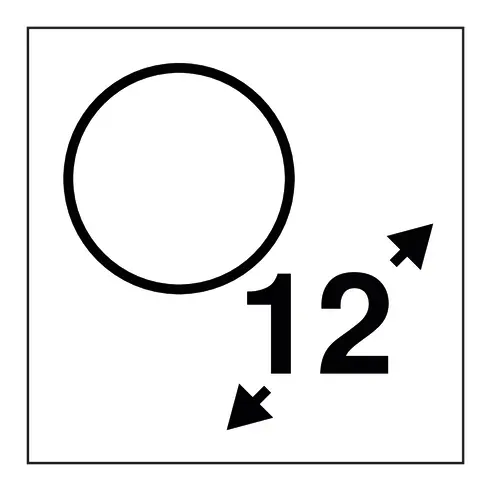

- Wenglor WRS12AL Mounting for 56,5 × 26 × 16 mm (M) Contour types-1 (28 KB)
- Wenglor WRS12AL Mounting for 56,5 × 26 × 16 mm (M) Contour types-2 (31 KB)

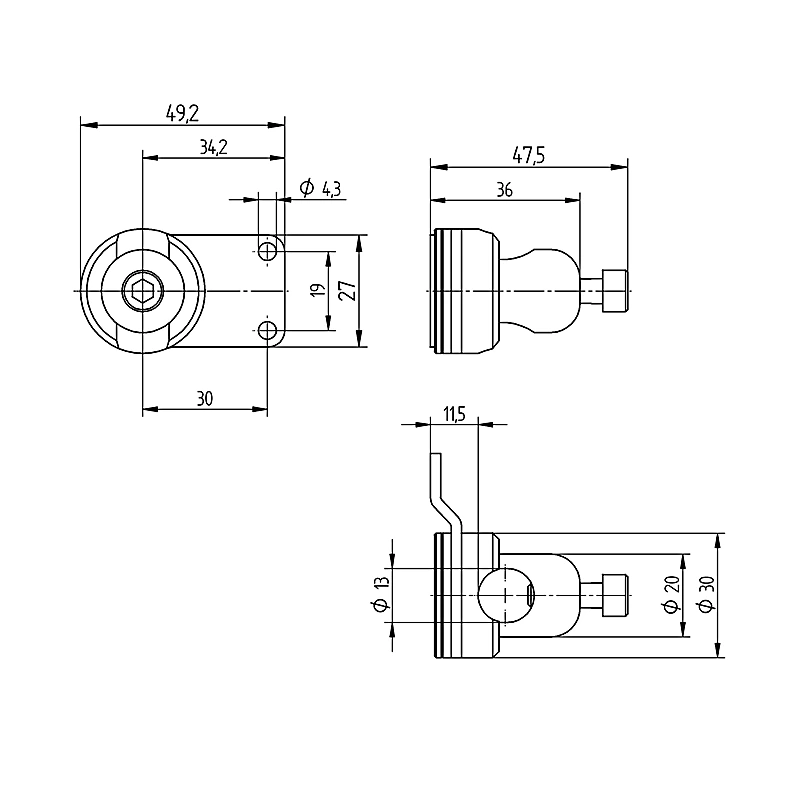

- Wenglor WRS12AL Mounting for 56,5 × 26 × 16 mm (M) Dimensioned Picture (20 KB)
