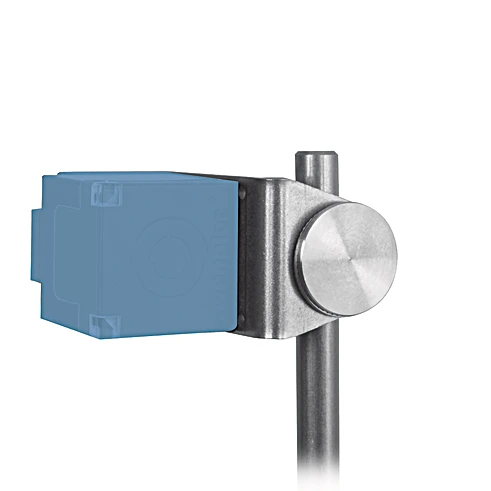

Wenglor WR1S12VA Mounting for 40 × 40 × 55 mm (Q/1Q) and Reflectors
Mounting for 40 × 40 × 55 mm (Q/1Q) and Reflectors.
$34.40
Part Number
- WR1S12VA
Highlights...
- WR1S12VA
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Stainless steel
- Simple installation
- Flexible alignment options
- Mounting type, device-side: Screwable to mounting plate
- Mounting type, system-side: Mounting bar
- Material Mounting Head: Stainless steel, V2A (1.4305/303)
- Material Mounting Plate: Stainless steel, V2A (1.4301/304)
- for Round Profile Diameter: 8 to 13 mm
- Weight: 175 g
- Packaging unit: 1 Piece
- Use: for square housing
Description
For 40 × 40 × 40 mm, RE6040BA, RE6151BM, RE6151BA, RR84BA, RF4050
Documents
Spec Sheets
Other

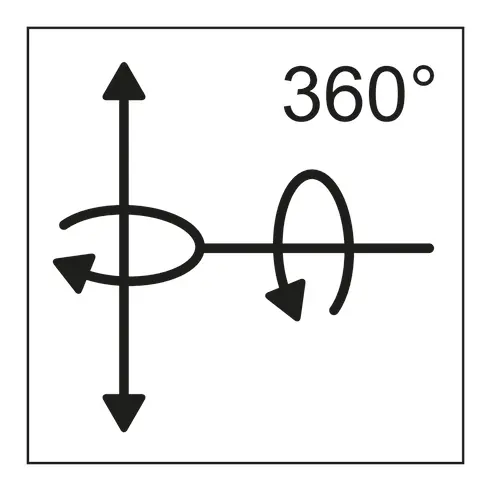

- Wenglor WR1S12VA Mounting for 40 × 40 × 55 mm (Q/1Q) and Reflectors Alignment possibilities (55 KB)

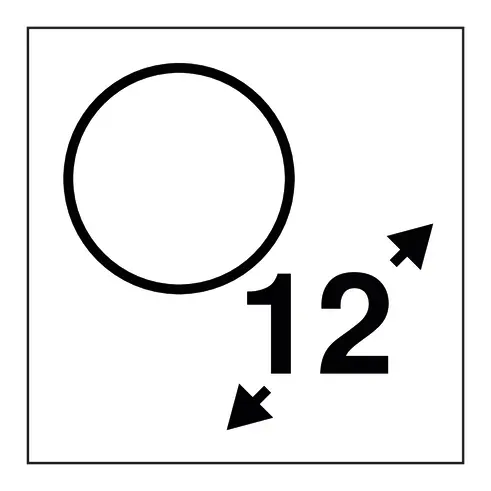

- Wenglor WR1S12VA Mounting for 40 × 40 × 55 mm (Q/1Q) and Reflectors Contour types-1 (28 KB)

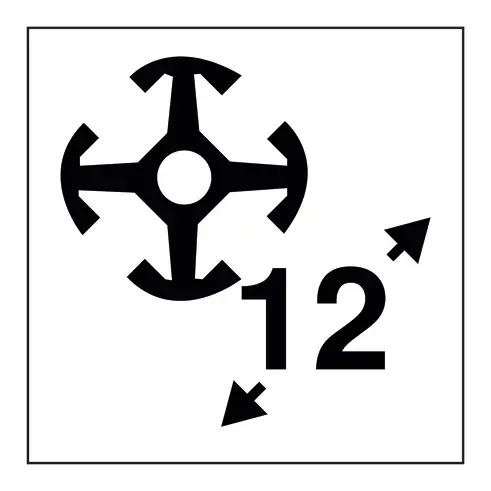

- Wenglor WR1S12VA Mounting for 40 × 40 × 55 mm (Q/1Q) and Reflectors Contour types-2 (31 KB)

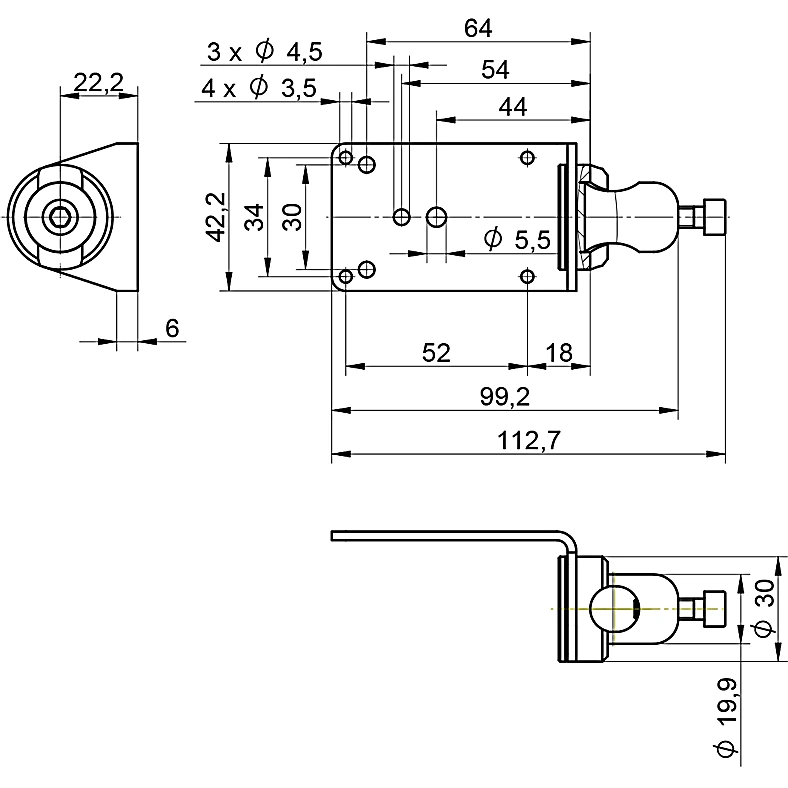

- Wenglor WR1S12VA Mounting for 40 × 40 × 55 mm (Q/1Q) and Reflectors Dimensioned Picture (30 KB)
