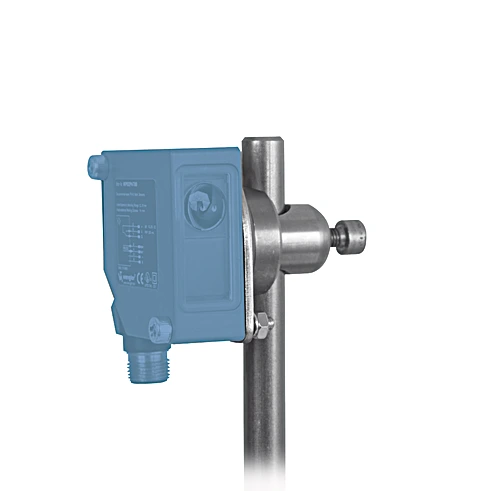

Wenglor WPS12AL Mounting for 50 × 50 × 20...30 mm (P)
Mounting for 50 × 50 × 20...30 mm (P).
$21.90
Part Number
- WPS12AL
Highlights...
- WPS12AL
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Aluminum
- Simple installation
- Flexible alignment options
- For 50 × 50 × 20 to 30 mm
- Mounting type, device-side: Screwable to mounting plate
- Mounting type, system-side: Mounting bar
- Material Mounting Head: Aluminum, anodised
- Material Mounting Plate: Stainless steel, V2A (1.4301/304)
- for Round Profile Diameter: 8 to 12.5 mm
- Weight: 80 g
- Scope of delivery: 1 × mounting head, 1 × mounting plate, 1 × M6 screw × 20 mm
- Packaging unit: 1 Piece
- Use: for square housing
Description
The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
Documents
Spec Sheets
Other

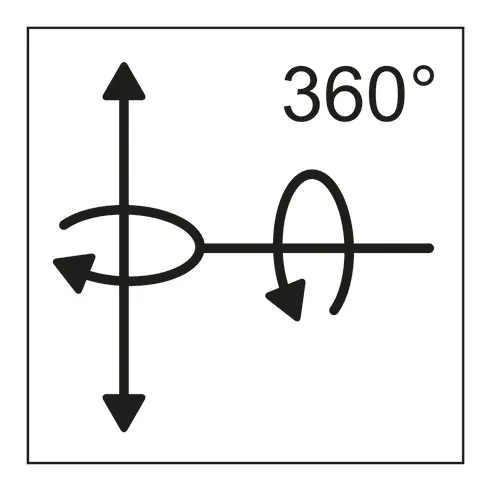

- Wenglor WPS12AL Mounting for 50 × 50 × 20...30 mm (P) Alignment possibilities (55 KB)

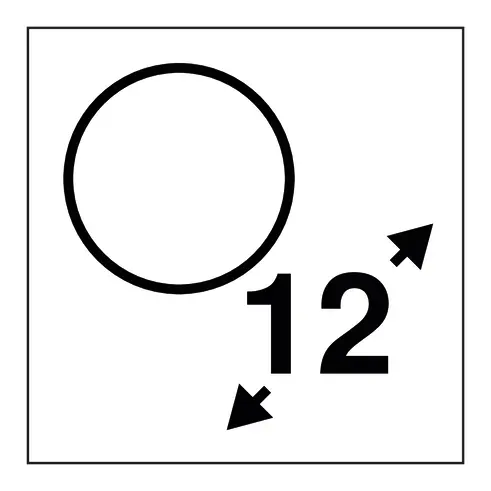

- Wenglor WPS12AL Mounting for 50 × 50 × 20...30 mm (P) Contour types-1 (28 KB)

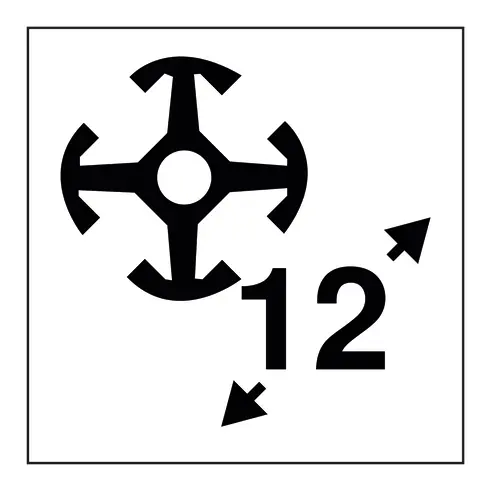

- Wenglor WPS12AL Mounting for 50 × 50 × 20...30 mm (P) Contour types-2 (31 KB)

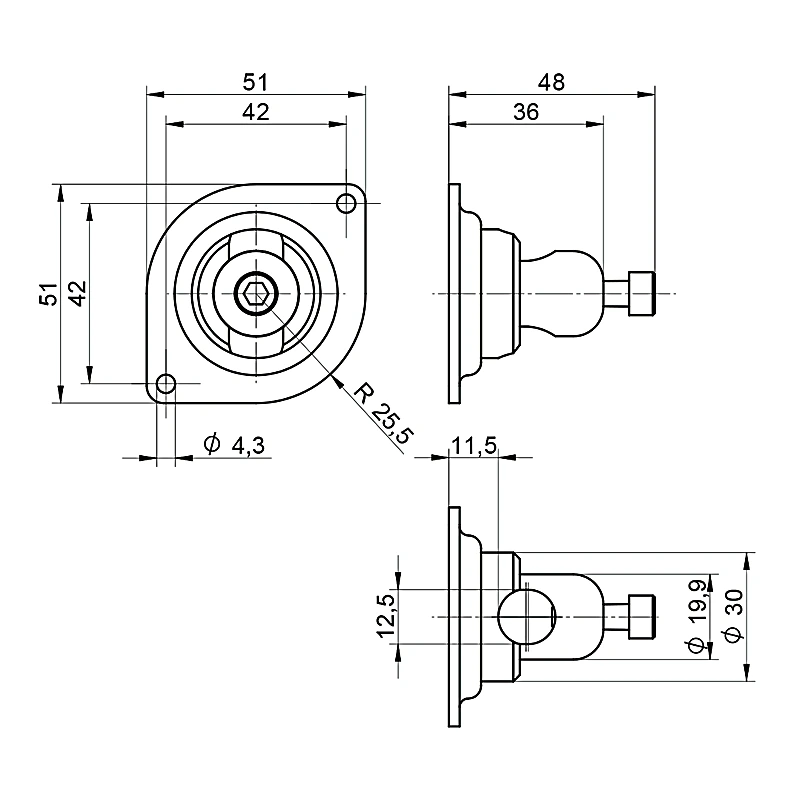

- Wenglor WPS12AL Mounting for 50 × 50 × 20...30 mm (P) Dimensioned Picture (31 KB)
